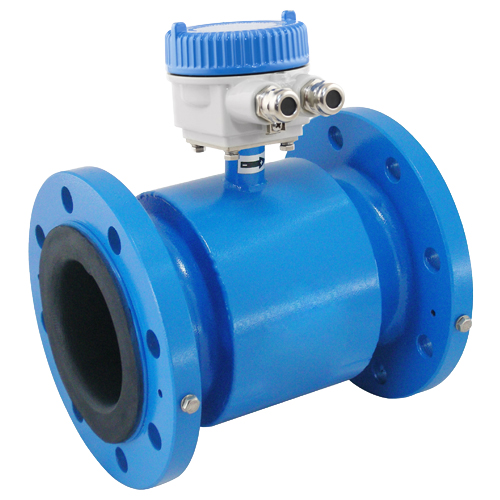

AMF900 Series
The AMF900 Series is a flange type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes
from 10A to 2000 mm. AMF900 is widely used for sewage, industrial waste, chemical, solvent, food &
beverage, pulp & paper and many other industrial fluid.
Main Features
-
Various liner and electrode satisfy most industrial applications
-
Flow Velocity range: 0-12 m/s, precise in low flow applications
-
It comes any flanges such as, ANSI, DIN, JIS etc.
-
Excellent for high pressure application
-
Protection class: IP68 available; sensor submersible
-
FEP Liner is suitable for vacuum tube
-
High accuracy of +/-0.4% value of reading (or +/-0.2% value of reading)
-
With Forward / Reverse flowrate measurement function
-
It has electrode cleaning function

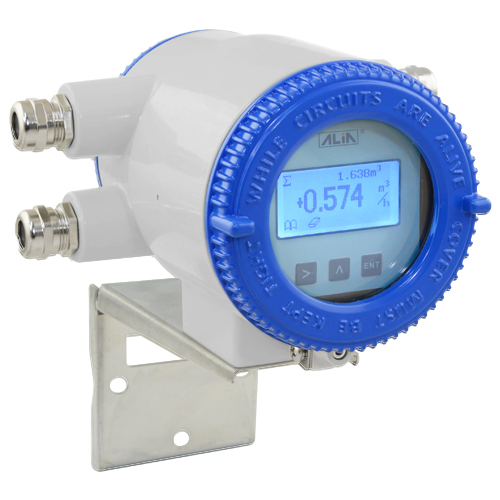

AMC3200 Series
The ALIAMAG AMC3200 Series converter is a microprocessor based intelligent transmitter that can be paired
with any of the Alia AMF series sensors. The unit features multiple display parameters including flow rate,
flow total, diagnostics, programming and troubleshooting.
It's equipped with bluetooth, HART and MODBUS communication functions.
Main Features
-
Three line LCD display Flow Rate / Totalizer
-
Accuracy of +/-0.2% value of reading
-
Bi-directional flow measurement, current and pulse output
-
Explosion Proof, Ex d ia [ia] q llC T6
-
Bluetooth / MODBUS / HART communication
-
Converter can be rotated at Four directions for easy installation

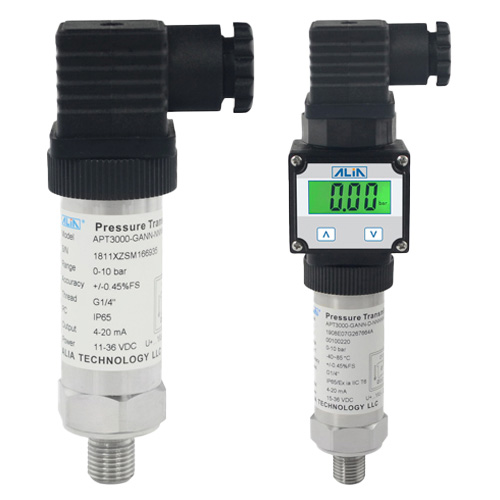

APT3000 Series
The APT3000 Series pressure transmitter for general industrial application is the ideal solution for
customers with demanding measuring requirements. APT3000 very high quality product, which even the most
adverse environmental conditions cannot affect.
Main Features
-
Updating time of output current in 90 ms
-
Improved performance, increased accuracy and greater stability
-
Two years stability of 0.15%
-
0.075% accuracy
-
4-20 mA output plus direct digital HART communication
-
Automatic zero calibration by press-button
-
Explosion Proof and weather proof housing

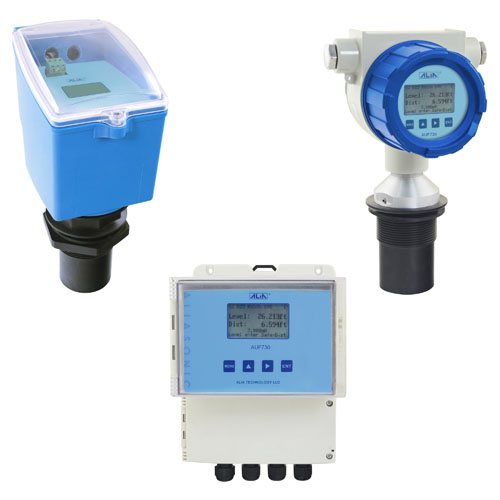

AUL730 Series Model
The AUL730 Series is a fixed mounted, Ultrasonic Level Transmitter with Fix-in the air and used for
non-invasive measurement.
Our microprocessor based, user friendly, field programmable level measurement technique allows no
interruption of the process level and has low installation costs.
Main Features
-
Simple set-up and operation
-
Fast and simple to install and configure
-
Loop-powered 4-20 mA output with HART signal
-
Low cost of installation and commissioning
-
Non-contact level measurement
-
Exclusive sensor for level transmitter
-
Response time less than 1 second

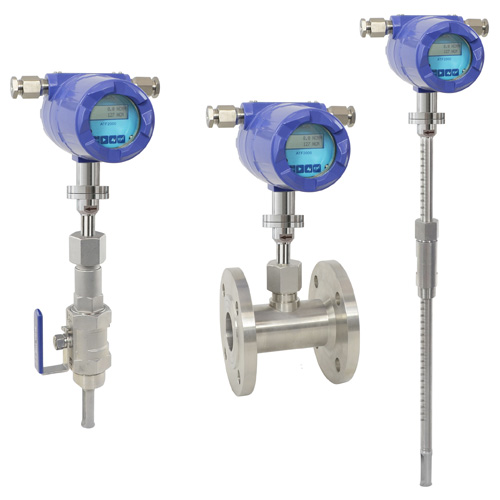

ATF2000 Series Model
ATF2000 Series thermal mass flow meter is designed on the basis of thermal dispersion. It adopts method of
constant differential temperature to measuring gas flow. It has the advantages of small size, high
digitization, easy installation and high accuracy.
Main Features
-
Wide flow range: 0.1-120 m/s for gas
-
Turndown ratio of least 100:1
-
Temperature range up to 350 °C
-
Good vibration resistance and long service life
-
Hot-tap installation. Easy to install & maintain
-
Direct mass flow measurement of gases. No additional pressure and temperature compensation

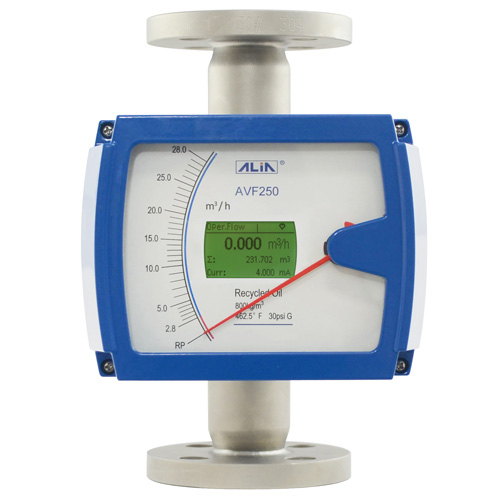

AVF250 Series
The AVF250 Series flowmeter is commonly used in location that required on-site analog flow indication. The
meter accurately measures small volumes / wide ranges of liquids, gases and steam.
Main Features
-
5 Digit Flowrate & 7 Digit Totalizer
-
Integrated temperature and pressure compensation
-
Local indication without auxiliary power
-
4-20 mA and scale pulse output
-
Low pressure loss in gas and steam application
-
Damper for Gas / Steam application
-
Consistent overall length
-
Heating jacket design
-
Intrinsically safe & explosion proof for hazardous area
