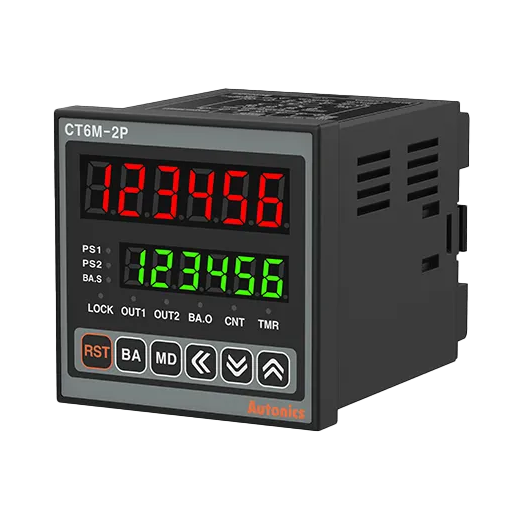

CT6M-2P4 Model

Main Features

• Display method : 6-digit 7-segment LED

• Operation method : Counter: Count up, Count down, Count up/down Timer: Count up, Count down

• Terminal : Terminal block

• Output Operation : SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME

• Power supply : 100-240VAC~ 50/60Hz

• Protection structure : IP65(front panel)

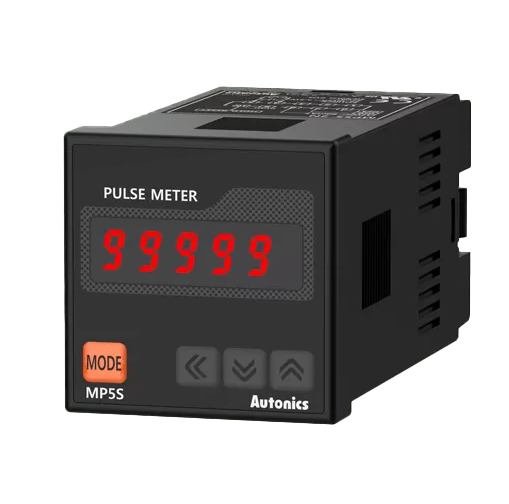

MP5W Series

The MP5S/MP5Y/MP5W series high performance digital pulse meters can display various values using pulse inputs including rotation speed, speed, frequency, and more with 16 different operation modes. The meters can be applied in various industrial applications for accurate measurement and clear readings.

• 16 Operation Modes

  Frequency/revolutions/speed, passing speed, cycle, passing time, time interval, time differential, absolute ratio, error ratio, density, error, length measurement 1, length measurement 2, interval, accumulation, addition/subtraction (individual input), addition/subtraction (phase difference input)

• Various Output Options

  Relay triple/quintuple output, NPN/PNP open collector quintuple output, BCD dynamic output, PV transmission output (current output), RS485 communication output

• Various Functions

  Prescale function, delay monitoring function, hysteresis, auto-zero, parameter lock function, data bank function (MP5W only)

• NPN input (non-contact/contact) or PNP input (non-contact/contact)

• Display range : -19999 to 99999

• Various Display Units

  rpm, rps, Hz, kHz, sec, min, m, mm, mm/s, m/s, m/min, m/h, ℓ/s, ℓ/min, ℓ/h, %, counts, etc.

• Power Supply

  100-240VAC 50/60Hz (AC type)
  24VAC 50/60Hz, 24-48VDC (AC/DC type)

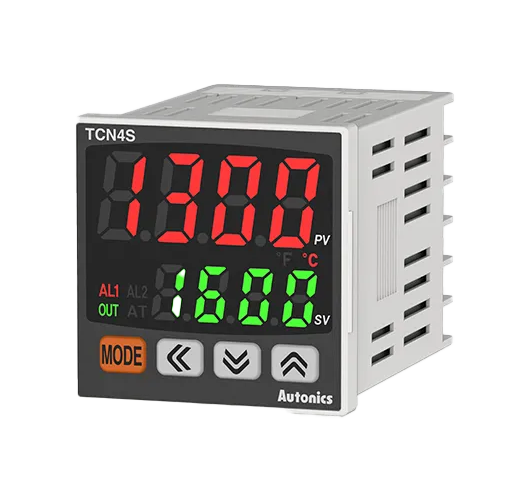

TCN4S-24R Series Model

Main Features

• Display method : 4-digit 7-segment LED

• Control method : ON/OFF, P, PI, PD, PID

• Input specification : Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100Ω, Cu50Ω

• Sampling cycle : 100ms

• Control output : Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]

• Power supply : 100-240VAC~ 50/60Hz

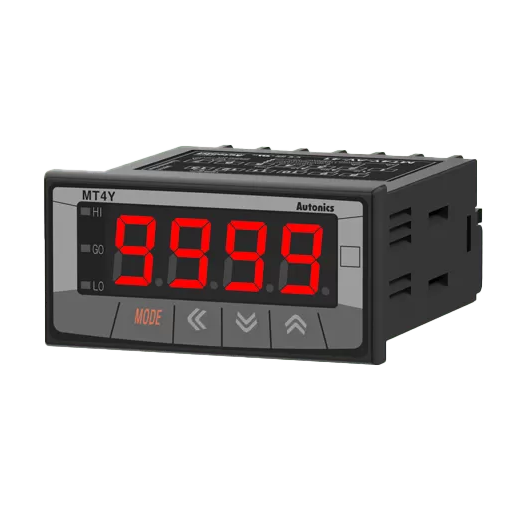

MT4W Series

• Various Input/Output Options (by model)

  Input options : DC voltage, DC current, AC voltage, AC current
  Output options : RS485 communication output, low speed serial output, BCD dynamic output, transmission output (DC 4-20mA/0-10 VDC), NPN/PNP open collector output, relay contact output (default option : indicator/no output)

• Maximum allowed input : 500VDC, DC 5A, 500VAC, AC 5A

• Display range : -1999 to 9999

• High/low-limit display scale function

• AC frequency measurement (range : 0.1 to 9999Hz)

• Various Functions

  Peak display value monitoring, display cycle delay, zero-point adjustment, peak display value correction, PV transmission output (DC 4-20mA/0-10 VDC) scale, etc.

• Power supply : 12-24VDC, 100-240VAC

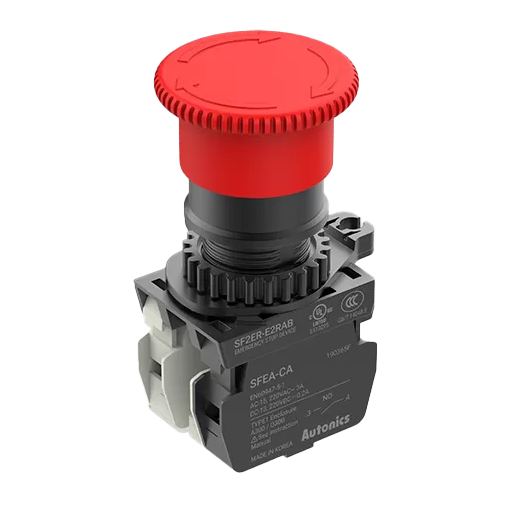

S2ER Series Model

The S2ER series emergency stop button switches are used to stop operation of machines during emergency situations.

Main Features

• Easy installation and removal of contact blocks using levers

• Install up to 3 contact blocks on a single switch

• Compatible with O type and Y type terminals

• Oil-resistant IP65 protection structure

• Direct opening mechanism allows interruption of circuit flow to prevent errors such as contact welding

• Various Accessories Available

  Guard ring to protect switch from accidental operation by users (SEM-S2)
  Ø60/Ø90 name plates
  Radial support

• Certifications

  EN 60947-5-1
  EN ISO 13850
  UL 508
  S-Mark

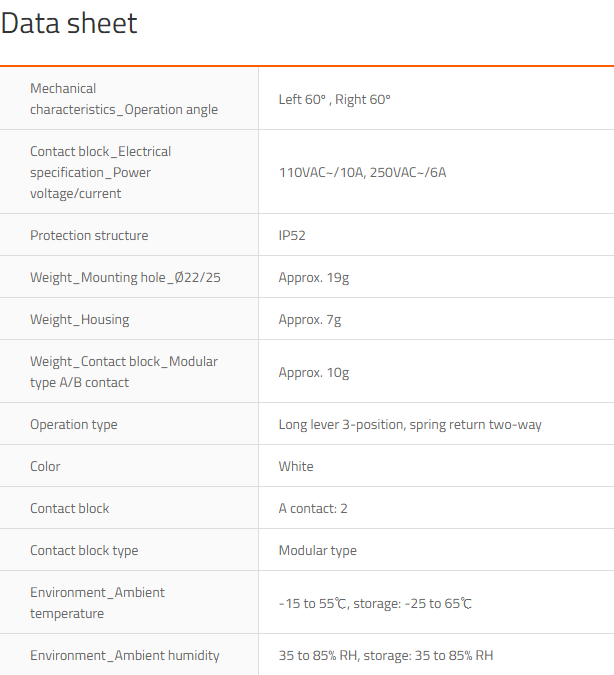

S2SR-S6W Series Model

Main Features

• Protection structure : IP52

• Operation type : Long lever 3-position, spring return two-way

• Color : White

• Contact block : A contact: 2

• Contact block type : Modular type

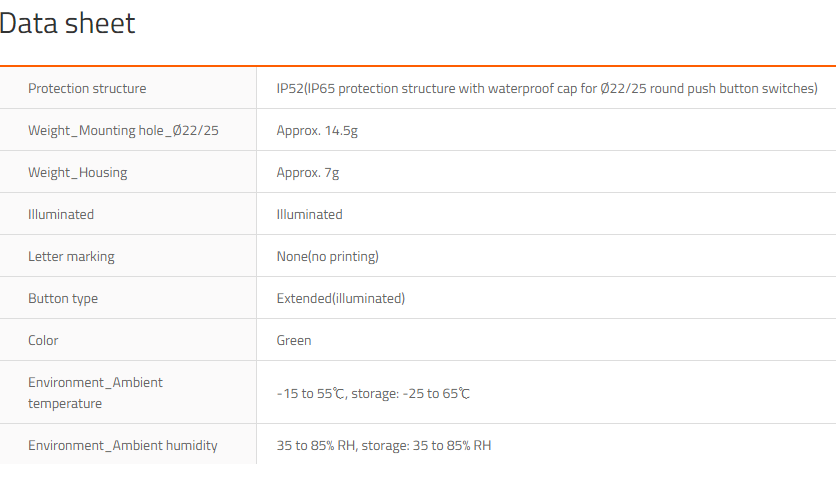

S2PRU-P3G Series Model

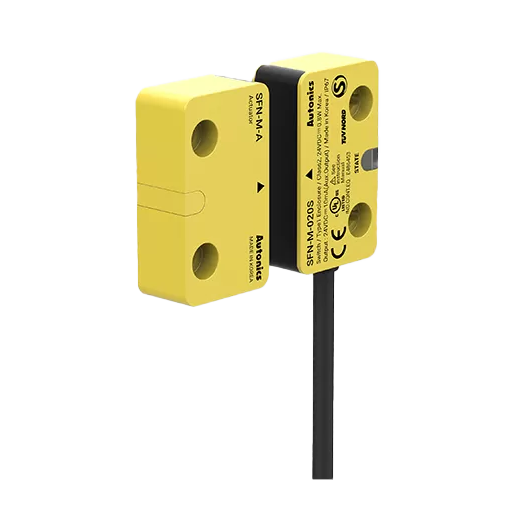

SFN Series Model

Safety Non-Contact Door Switches

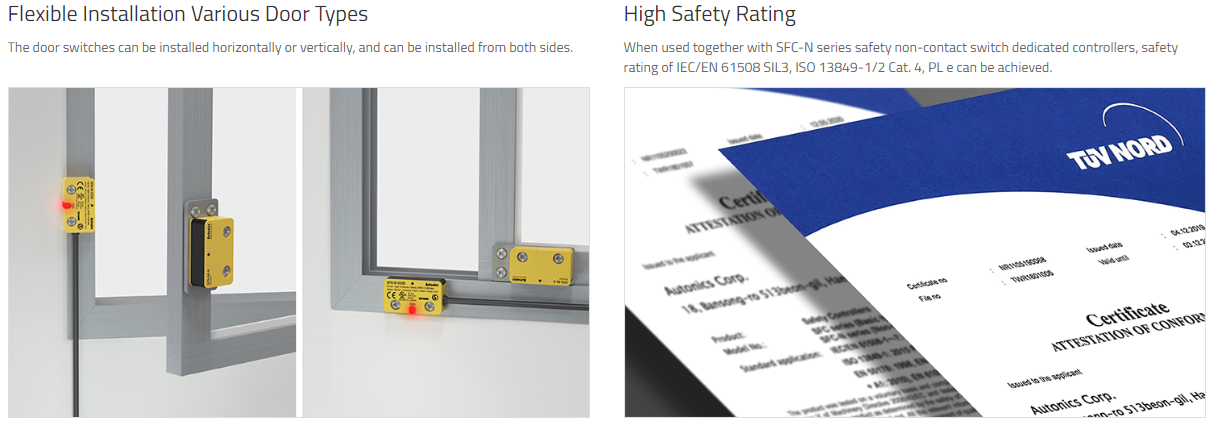

The SFN series safety non-contact door switches utilize magnetic type detection to monitor opening and closing of doors. The dedicated controller allows multiple connection of up to 30 units. The switches can be installed vertically or horizontally, and can also be installed from both sides.

Main Features

• Electromagnetic induction method

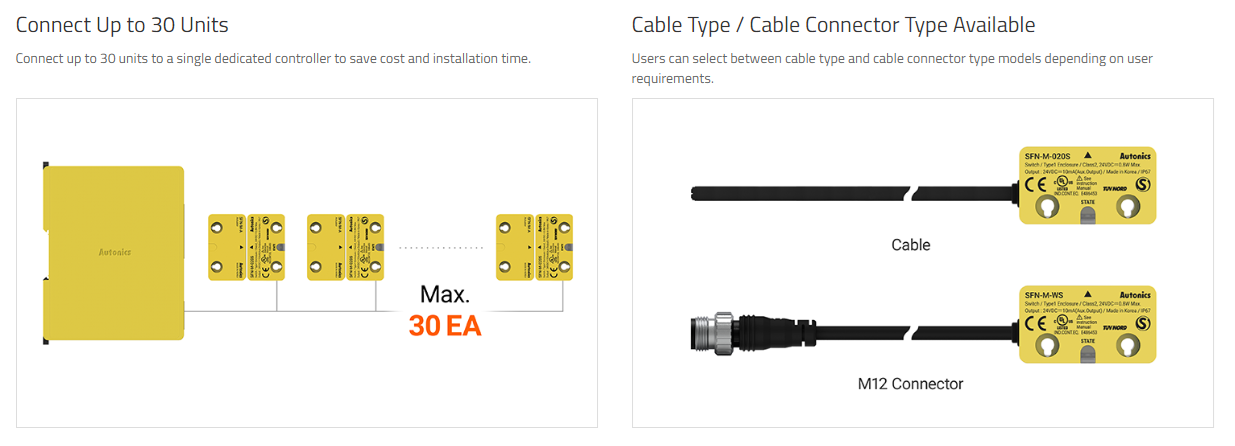

• Control up to 30 units with a single controller (SFC-N)

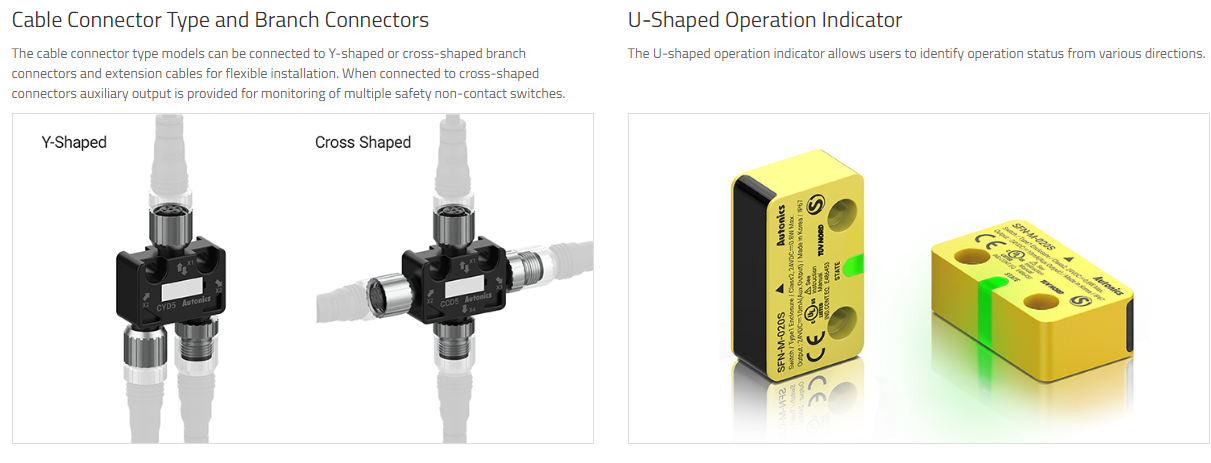

• Easy installation with cable connector models and cable/connector accessories

• Stable detection of actuators in front/rear, top/bottom, right/left direction doors

• U-shaped design with 2-color operation indicators visible from 3 sides (ON: green, OFF: red)

• IP67 protection structure (IEC standard)

• SIL 3, PL e rating when used with SFC-N series safety non-contact switch controllers

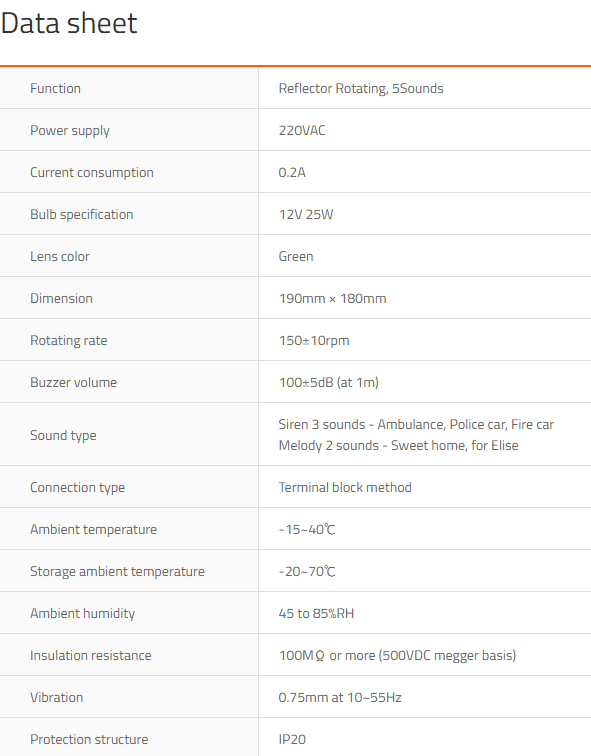

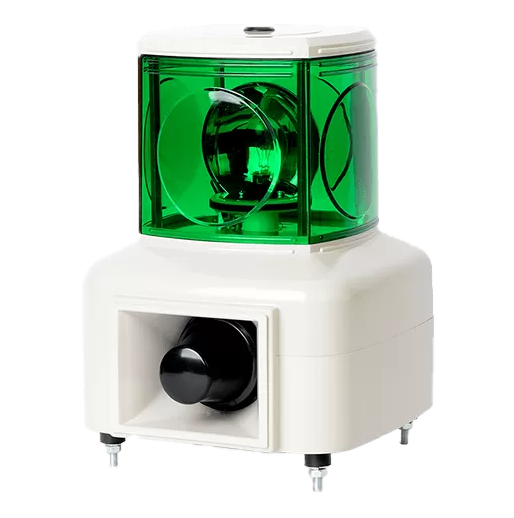

MSGS-120-G Series Model

Main Features

• Function : Reflector Rotating, 5Sounds

• Power supply : 220VAC

• Current consumption : 0.2A

• Bulb specification : 12V 25W

• Lens color : Green

• Connection type : Terminal block method

• Protection structure : IP20

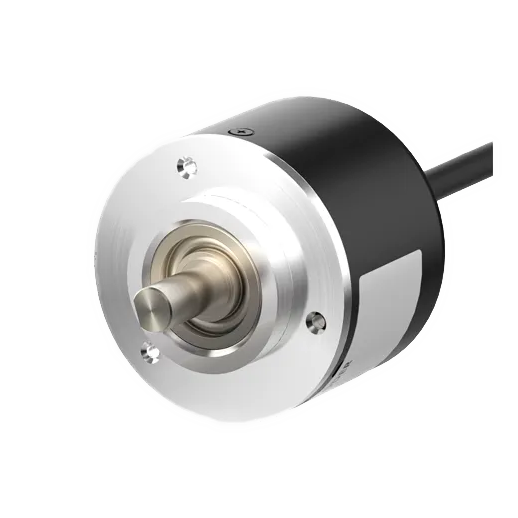

MGA50S Series Model

50 mm Magnetic Single-Turn Absolute Rotary Encoders (Shaft Type)
The MGA50S series magnetic single-turn absolute rotary encoders feature Ø50 mm size housings with Ø8 mm solid shafts. Magnetic encoders provide precision and accuracy even in harsh environments with shock, vibration, dust, or humidity (compared to optical encoders).

Main Features

• High accuracy in harsh environments including shock, vibration, dust, and humidity (compared to optical encoders)

• Longer service life compared to optical encoders

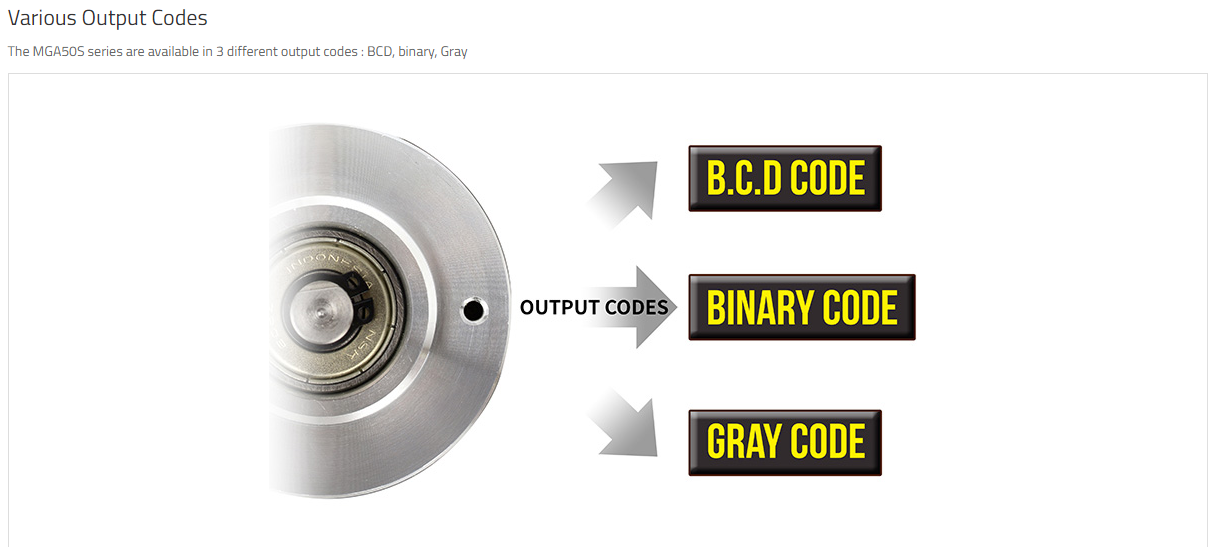

• Various output code options : BCD, binary, Gray

• Various resolutions : up to 10-bit (1024 divisions)

• Power supply : 5VDC ±5%, 12-24VDC ±5%

• IP50 protection structure (IEC standard)

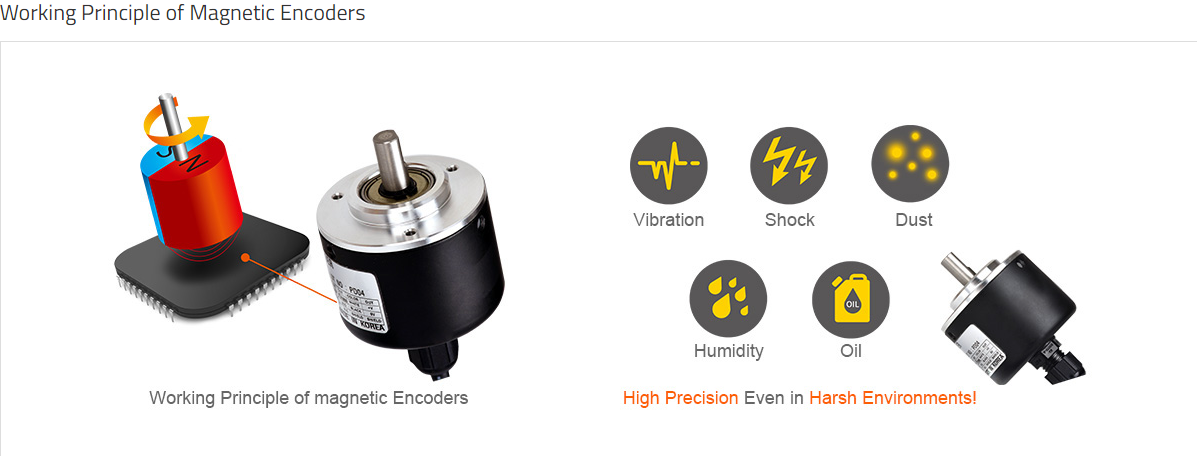

High Precision Even in Demanding Conditions: Unlike optical encoders which require perfect gaps between the disc and the optical sensor, magnetic encoders work by generating a signal as the magnetic field rotates. This allows higher tolerance for the encoders, allowing precise and accurate measurements in environments with shock, vibration, dust or humidity.

Longer Service Life (Compared to Optical Encoders): Magnetic rotary encoders do not contain sensitive components like optical encoders, allowing them to last longer in challenging environments. With higher shock and vibration resistance, and less chance of dust or condensation build-up, magnetic encoders inherently have a longer life cycle than its optical counterparts.

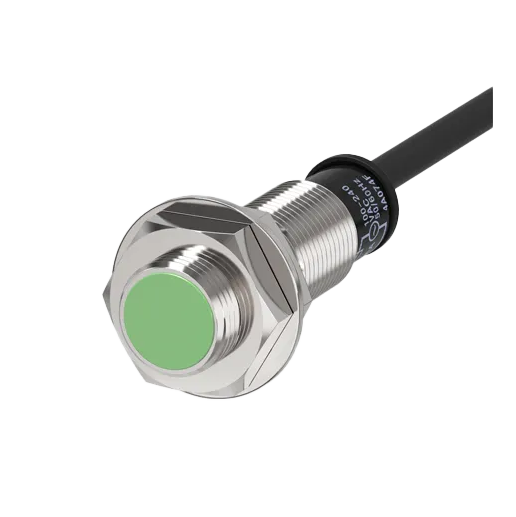

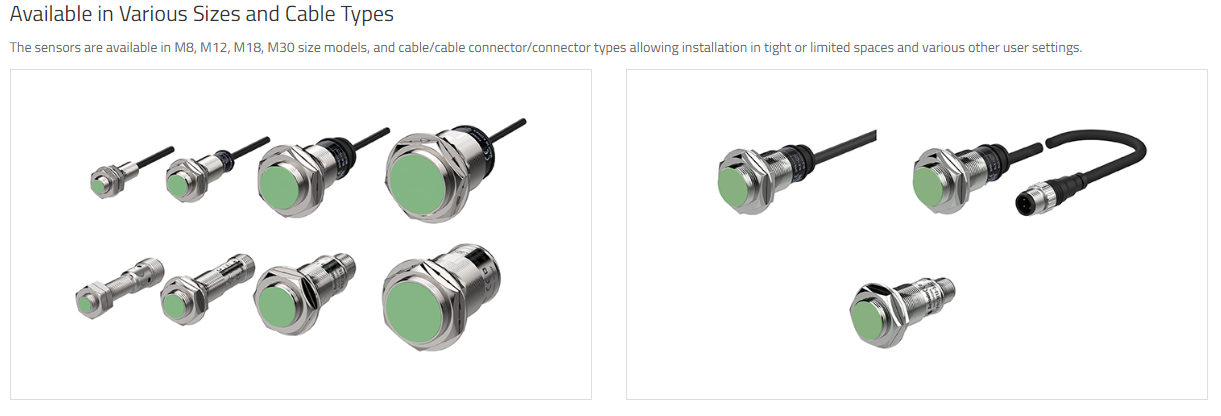

PR Series Model

Cylindrical Inductive Proximity Sensors
The PR series inductive proximity sensors feature solid sensing performance, excellent noise immunity and protection circuits. Available in various sizes and sensing distances, the standard cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects.

Main Features

• IP67 protection structure (IEC standard)

• Operation indicator (red LED)

• PTFE coating prevents malfunctions caused by welding spatter (spatter-resistant models)

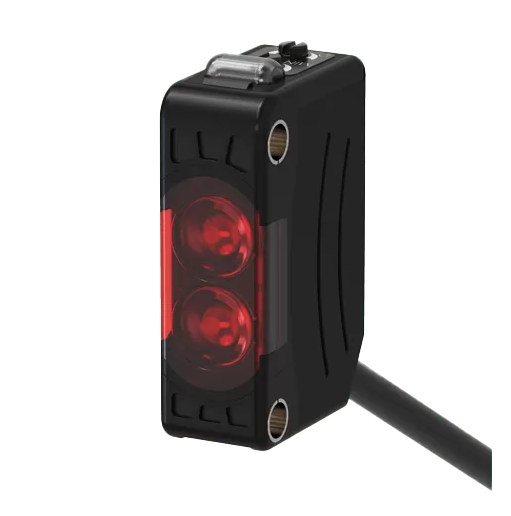

BJ Series Model

Compact High Performance Photoelectric Sensors
The BJ series compact photoelectric sensors feature high performance and excellent noise immunity for accurate and reliable presence detection. Light ON/Dark ON operation mode switch and sensitivity adjusters are available for easy configuration and set up (except BJG-DDT).

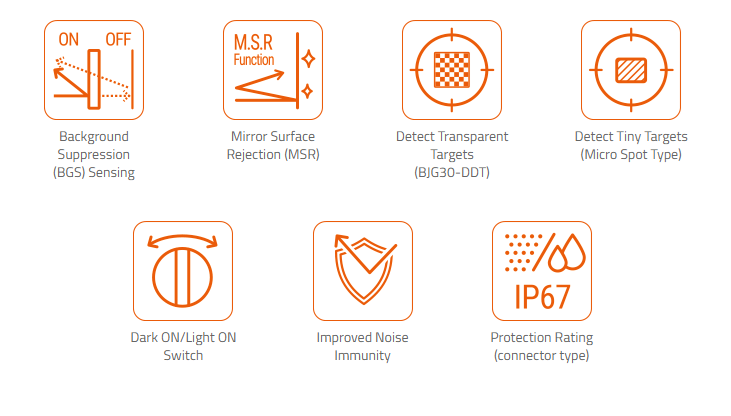

Common Features

• Compact size : W10.6×H32×L20mm

• Light ON/Dark ON operation mode switch (except BJG30-DDT)

• Sensitivity adjuster (except BJG30-DDT)

• Built-in reverse polarity protection circuit and output overcurrent (short-circuit) protection circuit

• Mutual interference prevention function (except BGS reflective type)

• Excellent noise immunity and minimal influence from ambient light

• IP65 protection structure (IEC standard)/IP67 for BJ-C connector types

Long Distance Type

• High performance lens with long sensing distance
  - Through-beam: 15m
  - Diffuse reflective type : 1m
  - Polarized retroreflective type : 3m (MS-2A)

• M.S.R. (Mirror Surface Rejection) function (polarized retroreflective type) for detecting mirrors or highly reflective targets

• Mutual interference prevention function (except through-beam type)

BGS Reflective Type

• BGS (background suppression) minimizes detection errors from background objects and the color or material of target objects. Also the detecting distance can be configured with the sensitivity adjuster.

• Visible light source allows users to identify the sensing area, and the tiny spot size minimizes influence from surrounding objects

Transparent Glass Sensing Type/Micro Spot Type

• Stable detection of transparent targets (LCD, PDP, glass etc.) (transparent glass sensing types)

• Check sensing area with visible micro spot (micro spot types)

• Detect tiny objects (minimum target size : Ø0.2mm copper wire)

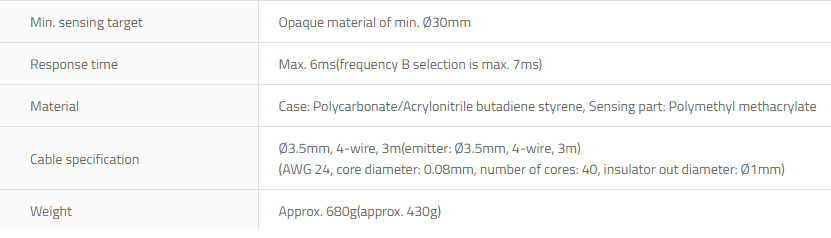

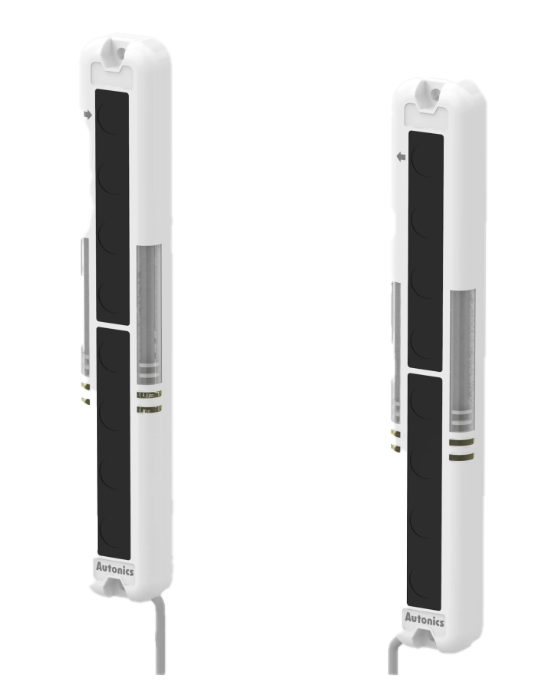

BWP20-20

• Sensing type : Through-beam type(direct beam)

• Sensing distance : 0.1 to 5m

• Light source : Infrared LED(850nm modulated)

• Optical axis pitch : 20mm

• Number of optical axes : 20

• Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)

• Control output : NPN open collector

• Operation mode : Light ON/Dark ON(set by switch)

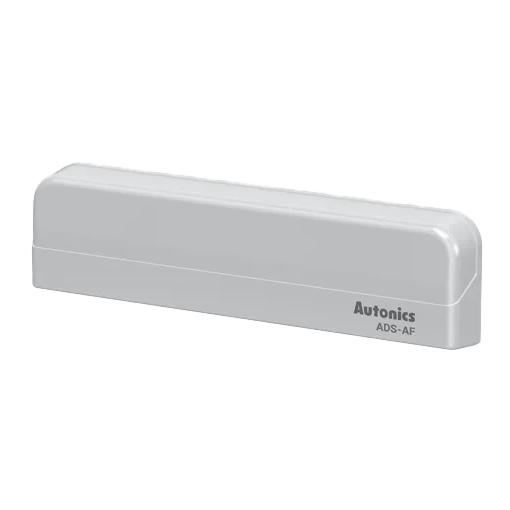

ASDA Series Model

Automatic Door Sensor
The ADS-A series automatic door sensors combine reliable sensing performance with sleek and simple design. The door sensors also feature various functions and features including adjustable hold time switch, 4-step detection angle adjustment, and adjustable detection area functions. With a built-in microprocessor, the ADS-A series door sensors provide optimal processing performance for stable performance in various environments.

Main Features

• Adjustable hold time switch (2, 7, 15 seconds)

• 4-step detection angle adjustment (7.5˚, 14.5˚, 21.5˚, 28.5˚)

• Adjustable detection area (left/right area elimination)

• Max. detection area : 2460mm×86mm (height 2.7m)

• Power supply : 24-240VAC/24-240VDC (universal AC/DC type), 12-24VAC/12-24VDC (universal AC/DC type)

• Built-in microprocessor

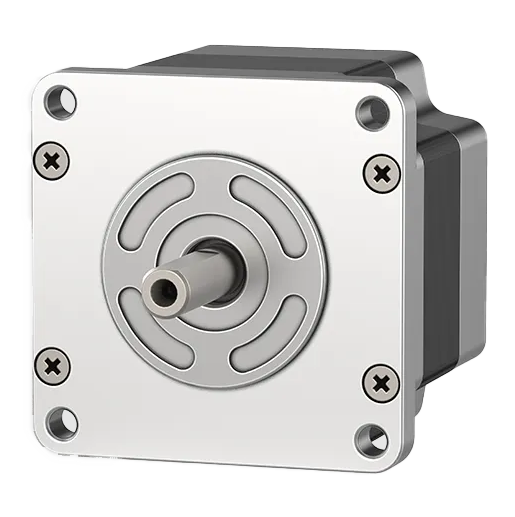

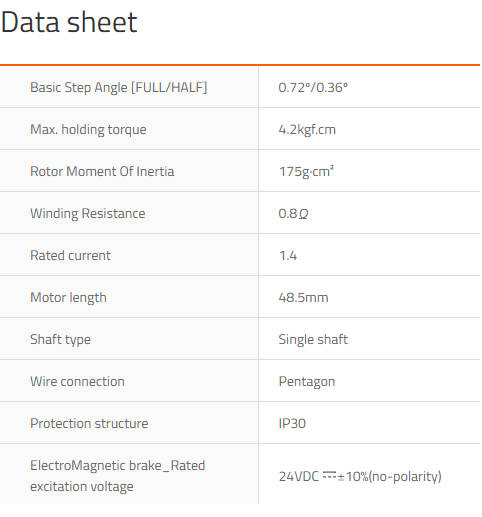

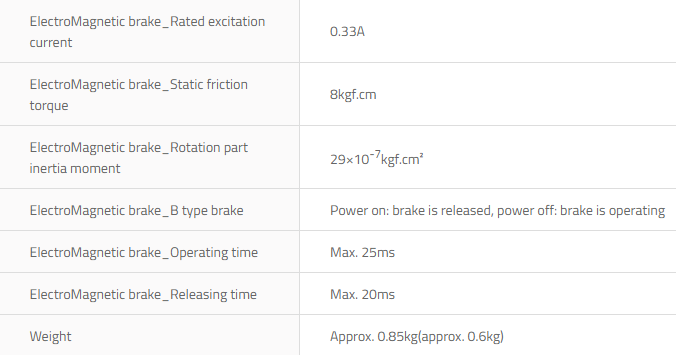

A4K-M564 Series Model

Common Features

• Basic Step Angle [FULL/HALF] : 0.72º/0.36º

• Max. holding torque : 4.2kgf.cm

• Rotor Moment Of Inertia : 175g·cm²

• Winding Resistance : 0.8Ω

• Rated current : 1.4

• Wire connection : Pentagon

• Protection structure : IP30
