DTM Series

Features And Benefits

• Modular design for easy wiring

• Data collection by hosts for highly efficient data exchange

• Various extension modules for a wide range of applications

• Supports RS-485 and Ethernet communication for multi-point temperature control: up to 64 points per host group, >1,000 points with several host groups

• User-defined communication addresses

• Complete isolation between channels

DTK Series

Features And Benefits

• High resolution LCD display

• Length shortened to 60 mm

• High speed sampling time 100 ms

• CE certified

DPM530

Features And Benefits

• High-precision Power Quality and Electricity Parameter Measurement

  High-precision Class 0.5S bidirectional energy and electricity parameter measurement, complies with IEC 62053 criteria

• Supports power quality measurement of total / individual harmonic distortion and current / voltage unbalance

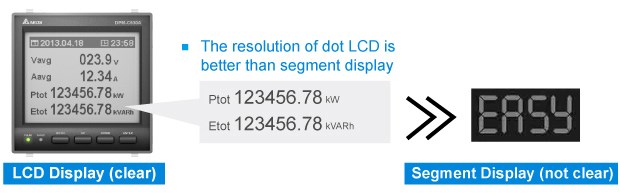

• Large LCD Screen

  Dot matrix LCD display with 198 x 160 dots, supports clear reading and display of English (capital and lowercase letters), Traditional Chinese, Simplified Chinese, Japanese, and other languages

DPM-C501

Features And Benefits

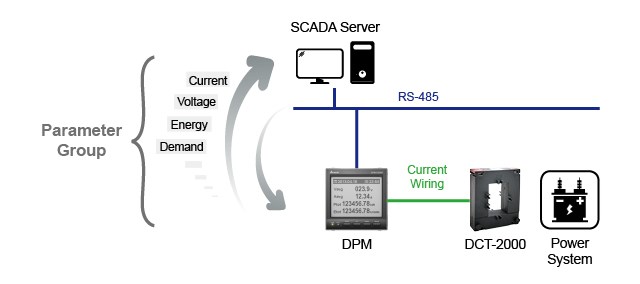

• Parameter Grouping Function

  All electricity data can be combined as a parameter group that allows access for master controllers (including PLCs, SCADA and EMS). This function reduces reading time as well as enhances real-time data accessibility of the master controllers

• Combines several discontinuous register addresses to one continuous address, reducing commands to achieve high-efficiency data acquisition of the master controllers (SCADA and PLC)

• CE certified

Active Power Filter (APF)

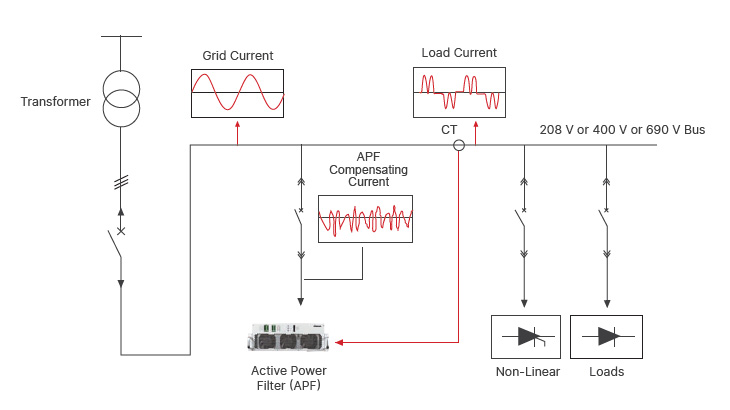

APF Principle

Delta's PQC Series APF is connected in parallel with non-linear loads, and uses one set of current transformers (CT) to detect the load current.

Features And Benefits

• Multifunctional: Harmonic, reactive power and imbalance compensation

• Harmonic Elimination Range: 2nd~50th order (Selectable)

• High harmonic filtering rate: Up to 98%

• Excellent reactive compensation: High speed, Precise (-0.99 ≤ PF ≤ 0.99), Step-less, Bi-directional (capacitive and inductance) compensation

• Excellent imbalance correction: Both negative and zero sequence, mitigates neutral current

• Wide input voltage & frequency range, adapts to tough electrical environments

• Complete protection: Grid Over/Under voltage, APF over current, over temperature, and more. All faults are recorded in the event log, which is convenient for failure analysis

Static Var Generator (SVG)

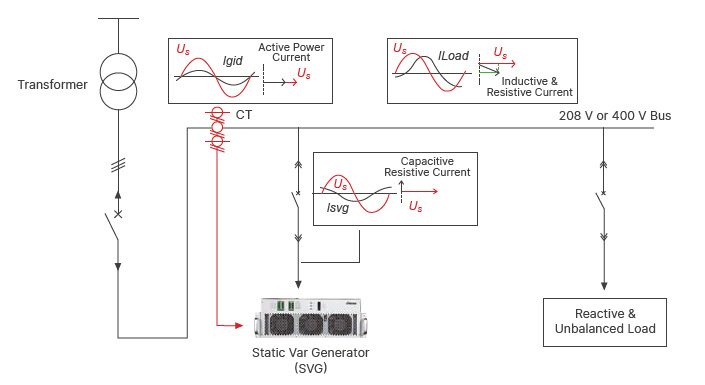

SVG Principle

The principle of the SVG is very similar to that of Active Power Filter, as demonstrated in the picture below.

Features And Benefits

• Multifunctional: Reactive power, imbalance and part of Harmonic compensation

• Excellent reactive compensation: High speed, Precise (-0.99 ≤ Cosφ ≤ 0.99), Step-less, Bi-directional (capacitive and inductance) compensation

• Excellent imbalance correction: Both negative and zero sequence, mitigates neutral current

• Harmonic Elimination Range: 2nd~25th order (Selectable)

• Harmonic current capacity: 20% of rated current, 100 kvar SVG can output 30A H2-H25 harmonic compensation current

• Wide input voltage & frequency range, adapts to tough electrical environment

• Complete protection: Grid over/under voltage, SVG over current, over temperature, and others. All faults recorded in event log, convenient for failure analysis

REG2000 Series

A traditional drive system used for inertia load work generally performs rapid deceleration, braking and positioning. When its motor is in generator mode it produces large amounts of regenerative energy that must be consumed to maintain a stable DC bus voltage and safe operation. The traditional method to solve the regenerative energy problem is to install a brake resistor.

Delta's REG2000 series is capable of collecting and converting your system's regenerative energy into reusable electricity for the ultimate in energy savings. The installation process is as simple as installing a brake resistor, but with only half the size and better efficiency.

Din Rail Lyte Series (DRL)

Features And Benefits

• The DRL provides high-level programming functionalities for robotic motion control, enabling precise manipulation and task execution.

• Supports customizable scripts for diverse industrial tasks, such as pick-and-place, sorting, and assembly operations.

• Real-time synchronization with external systems, allowing for efficient production line management.

• Streamlines the process of programming robotic systems, reducing development time.

• Supports a wide range of applications across industries, such as electronics, packaging, and logistics.

• Reduces the need for additional software or external controllers by being an all-in-one solution.

• Enables multitasking, conditional programming, and other advanced operational logic.
