Delta Human Machine Interface Products
CNC Solutions

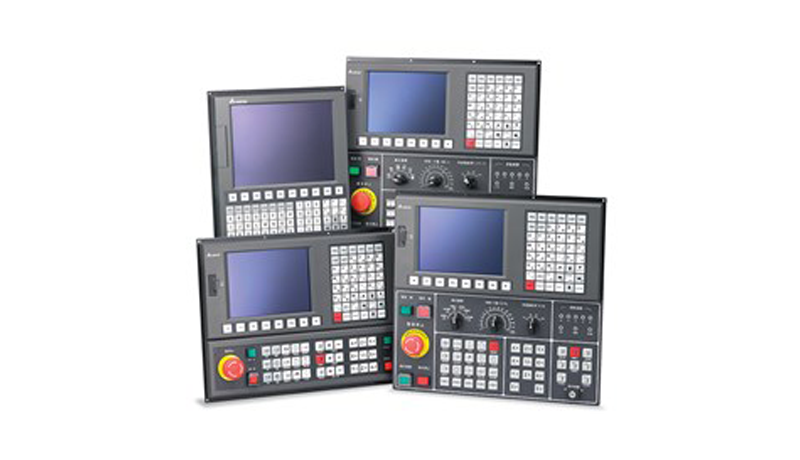

CNC Solution B Series
Features And Benefits

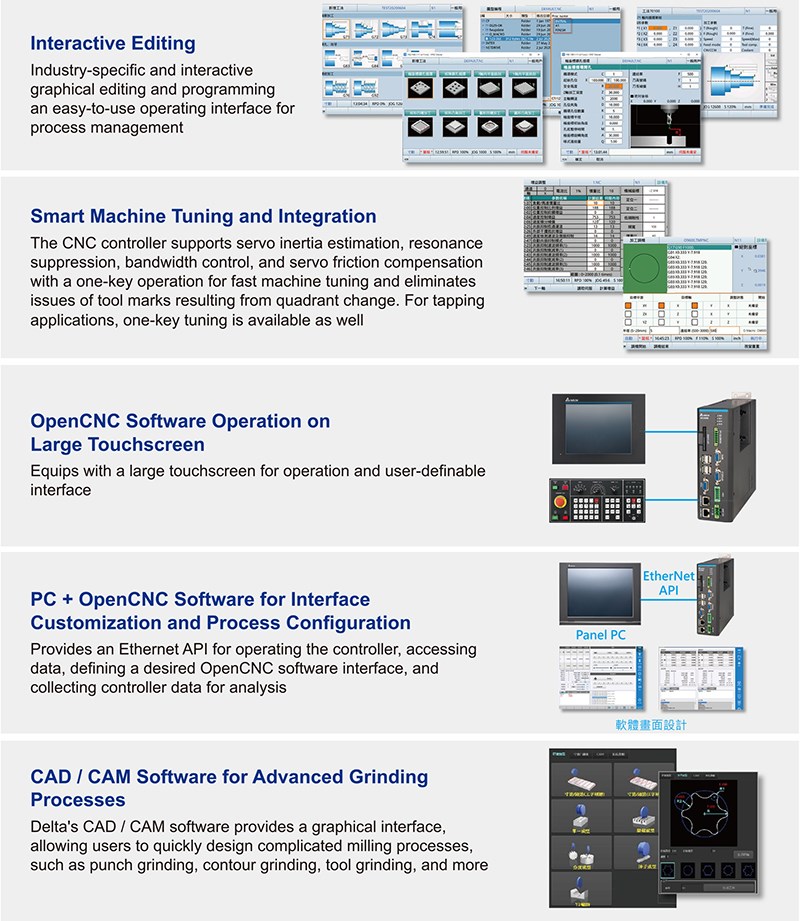

CNC B Series Specifications
CNC Solution B Series
Open CNC Controller NC EB Series
Features And Benefits
Open CNC Controller Specifications

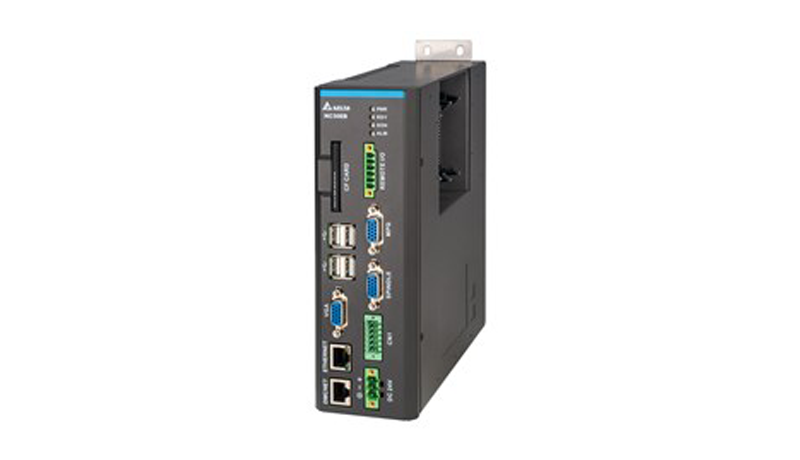

Open CNC Controller
CNC Accessories
Touchscreen
Features And Benefits

  • New 10" / 15" external touch screen that enhances the user experience

  • Flexible and perfectly integrates with Open CNC B series

  • Comes equipped with Delta's large touch screen for operating the OpenCNC controller and defining a desired and user-friendly interface.

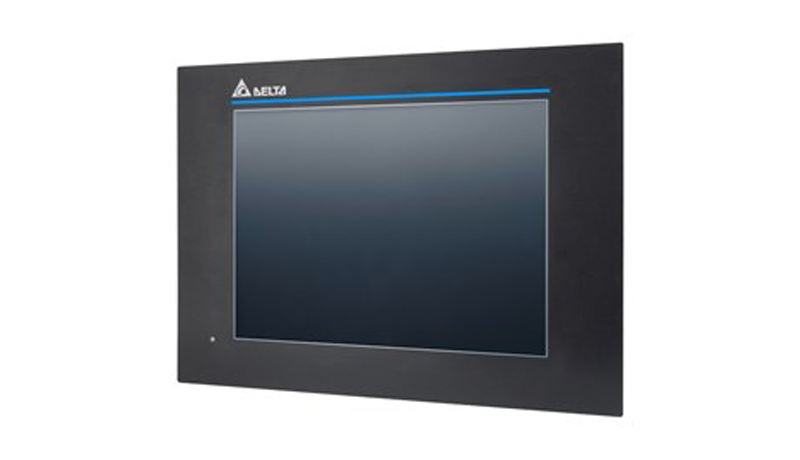

Touchscreen Accessory

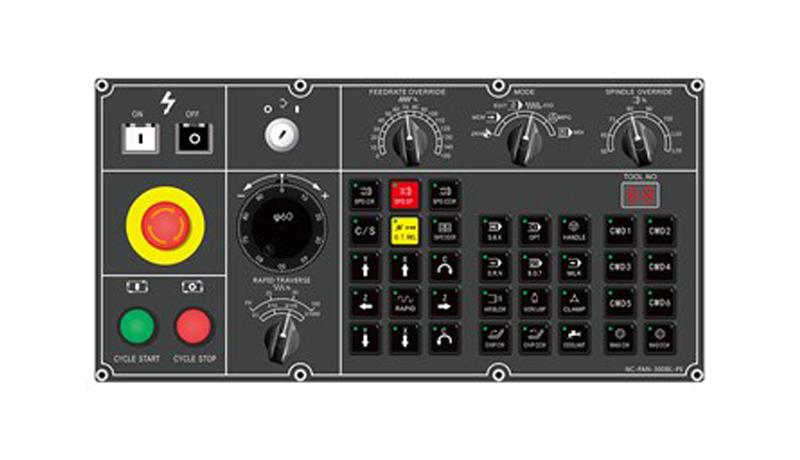

Second Operating Panel
Features And Benefits

  • Comes equipped with Delta's large touch screen for operating the OpenCNC controller and defining a desired and user-friendly interface.

  • Delta's second operating panel provides abundant keys/buttons and supports user-defined features according to user needs

Second Operating Panel

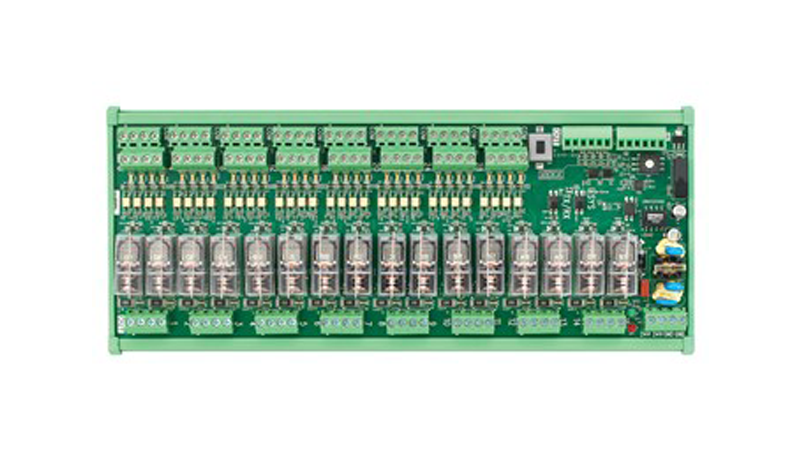

Expansion I/O
Features And Benefits

  • Comes equipped with Delta's large touch screen for operating the OpenCNC controller and defining a desired and user-friendly interface.

  • Delta also supports a comprehensive range of accessories, such as the second operating panel, and handwheel.

Expansion I/O
Handwheel
Features And Benefits

  • Comes equipped with Delta's large touch screen for operating the OpenCNC controller and defining a desired and user-friendly interface.

  • Delta also supports a comprehensive range of accessories, such as the second operating panel, and handwheel.

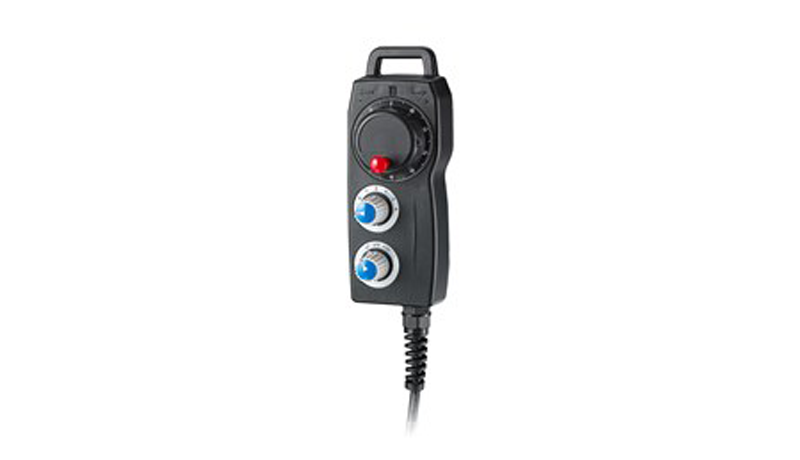

Handwheel Accessory
DOP-100 Series
Advanced HMI - W Type
Features And Benefits

  • Size options: 4.3" / 7" / 10.1" / 12" / 15"

  • High-performance CPU: Cortex-A8, Cortex-A7 Dual Core

  • Highly integrated design: Built-in 2 Ethernet ports, 4 serial communication ports (D-Sub x 2), USB, SD card slot, and more (applicable to 12"/15" models)

  • Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation

  • Multi-language input: Supports 16 languages, applicable for recipe parameters and account input

DOP-100 W Type
M Type
Features And Benefits

  • Multiple Size options: 12" / 15"

  • High-performance CPU: Cortex-A7 Dual Core

  • Highly integrated design: Built-in 2 Ethernet ports, 4 serial communication ports (D-Sub x 2), USB, SD card slot, and more.

  • Multi-language input: Supports 16 languages, applicable for recipe parameters and account input

DOP-100 M Type
Handheld HMI
H Type
Features And Benefits

  • Highly integrated design: Built-in Ethernet port or serial communication ports, USB slave, SD/SDHC card slot, and more

  • High-performance CPU: Cortex-A8

  • Multi-functional accessories: Built-in emergency stop switch, 3-position operation switch, MPG (optional).

  • Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation

  • Certification: CE

Handheld H Type
Standard HMI
C Type
Features And Benefits

  • Multiple size options: 5.6" / 7" / 10.1" / 10.4"

  • High-performance CPU: Cortex-A8

  • Highly integrated design: Built-in 3 serial communication ports (D-Sub x 2), USB, and more.

  • Security isolation protection: Power isolation

  • Certification: CE/UL

Standard C Type
P Type
Features And Benefits

  • Full lamination design

  • High-performance CPU: Cortex-A8

  • Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 2), USB, and more

  • Security isolation protection: Ethernet isolation

  • Certification: CE/UL

Standard P Type
E Type
Features And Benefits

  • Multiple size options: 7" (16:9) / 7" (4:3)

  • High-performance CPU: Cortex-A8

  • Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 2), USB, SD card slot, and more

  • Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation

  • Certification: CE/UL

Standard E Type
I Type
Features And Benefits

  • Multiple size options: 7" / 8" / 10.1" / 10.4"

  • High-performance CPU: Cortex-A8

  • Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 3), USB, SD card slot, and more

  • Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation

  • Certification: CE/UL

Standard I Type
Basic HMI
S Type
Features And Benefits

  • IPS design: Wide viewing angle

  • High-performance CPU: Cortex-A8

  • Highly integrated design: Built-in 2 serial communication ports (D-Sub x 1), USB, and more

  • Certification: CE / UL

Basic S Type
B Type
Features And Benefits

  • Multiple size options: 4.3" / 7"

  • High-performance CPU: Cortex-A8

  • Highly integrated design: Built-in 2 serial communication ports (D-Sub x 1), USB, and more

  • Certification: CE / UL

Basic B Type
D Type
Features And Benefits

  • Multiple size options: 4.3" / 7"

  • IPS design: Wide viewing angle (4.3")

  • High-performance CPU: Cortex-A8

  • Highly integrated design: Built-in Ethernet port, 2 serial communication ports (D-Sub x 1), USB, and more

  • Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation (7" comes with only Ethernet isolation)

  • Certification: CE / UL

Basic D Type
TPO4 Series
Features And Benefits

  • Adopts the core of the DVP-SS2 Series PLC: program capacity: 8 k steps / D device: 5k words

  • Provides 2 sets of 10 kHz high-speed pulse input

  • 4.1" STN-LCD

  • Provides 0 ~ 9 numeric keys with user-defined function

  • Built-in USB port for program upload/download

  • Built-in RS-485 port*2

  • Supports MODBUS ASCII/RTU modes

  • User-defined boot screen available

  • Built-in real time clock (RTC)

  • Digital and analog I/O terminals available

TPO4 Series
Servo Systems
ASDA-A3 Series
Features And Benefits

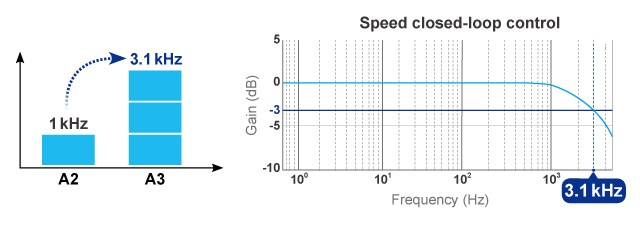

  • 3.1 kHz Bandwidth
    ASDA-A3 Bandwidth Feature

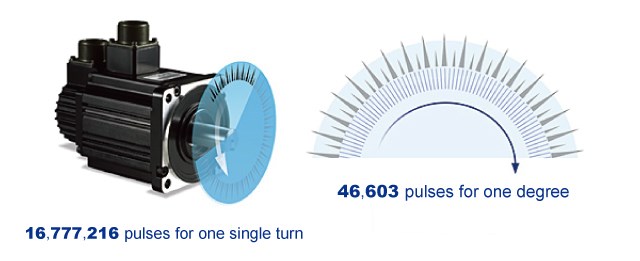

  • 24-bit Absolute Type Encoder

    16,777,216 pulses/turns ensure precise positioning

    Steady performance at low-speed enhances machining quality

    Keeps motor's position during power shortage

    ASDA-A3 Encoder Feature

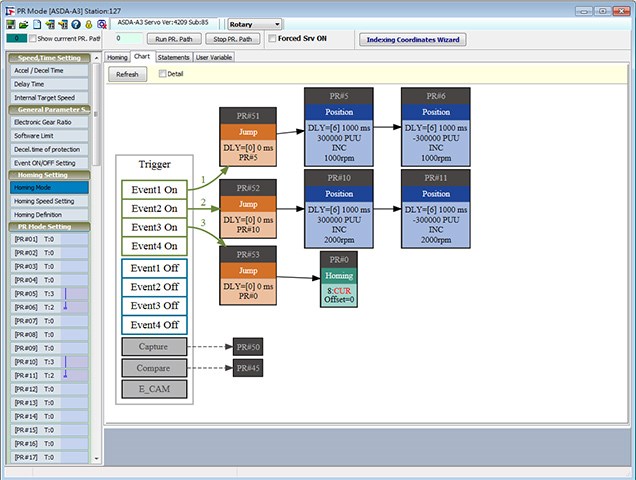

  • Advanced Motion Control

    E-CAM & 99 sophisticated motion commands and segments allowed

    Graphical user interface offers simple setup and programming

    Arithmetic operation / comparison commands available

    General motion functions such as homing, position and speed commands

    Superimposition, blending, and jump change motion commands provided

    ASDA-A3 Motion Control Feature

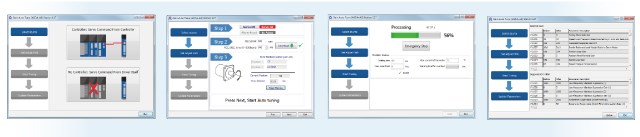

  • Comprehensive Auto-Tuning Functions

    Built-in auto-tuning function lowers the barriers for users and optimizes machine performance with less tuning effort

    Provides step-by-step guidance wizard for easily tuning and setting up servos via panel keypad or software

    ASDA-A3 Auto-Tuning Feature

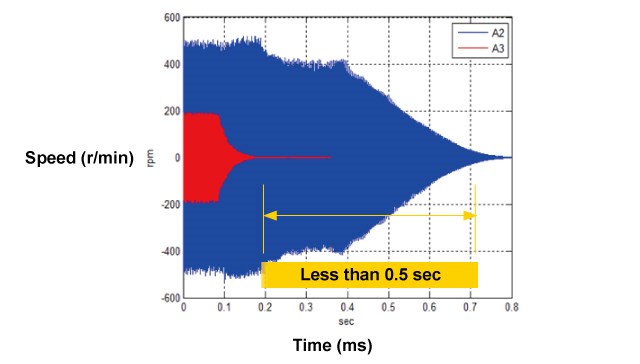

  • Excellent Vibration Suppression
    Advanced Notch Filter

    Provides 5 sets of notch filters with up to 5 kHz tunable bandwidth

    The filters can search resonance in a shorter time and set the attenuation level automatically, avoiding damage to machines

    ASDA-A3 Vibration Suppression Feature
ASDA-A3 Series Servo
ASDA-B3 Series
Features And Benefits

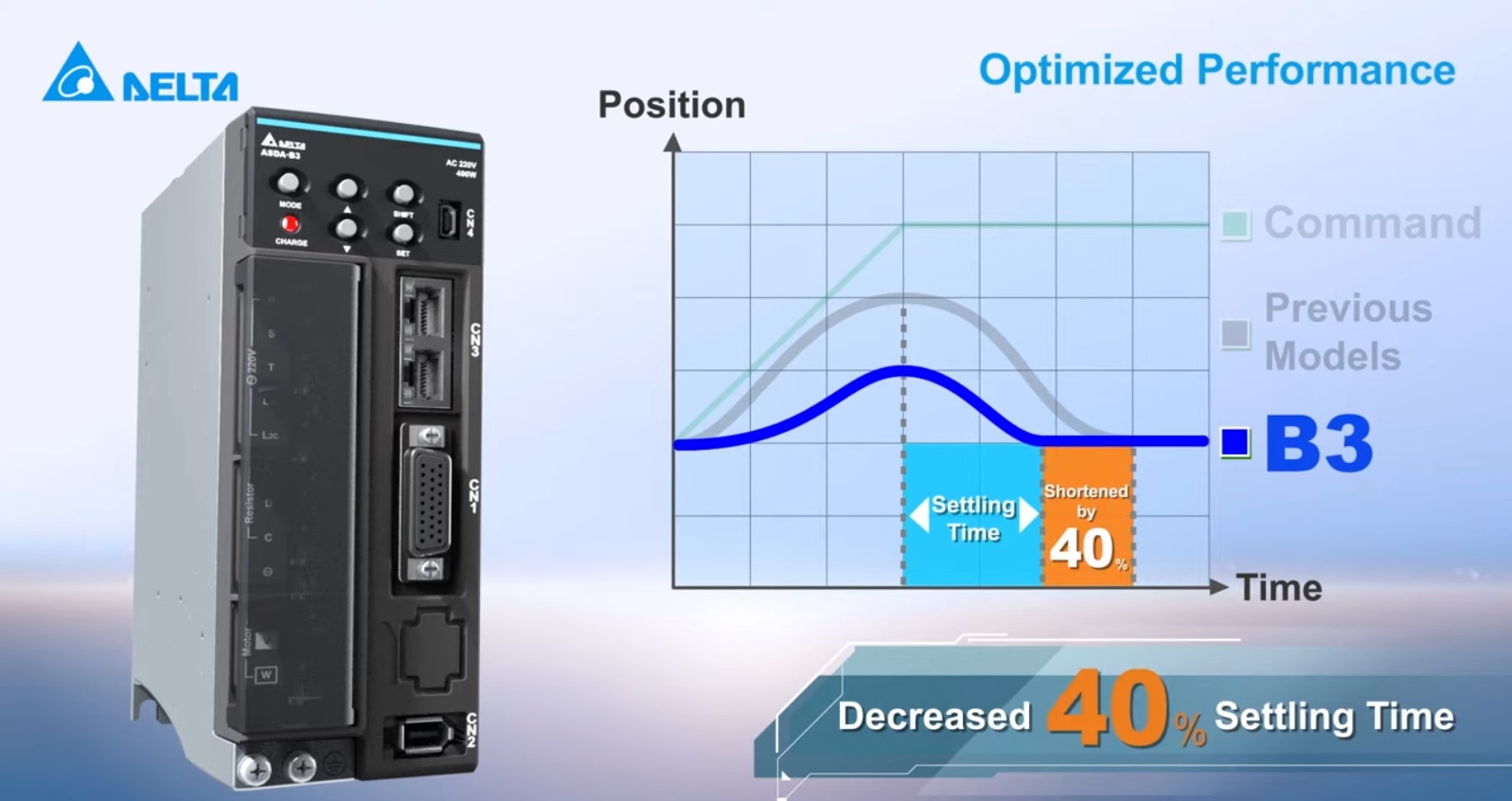

  • High responsiveness shortens settling time by 40% compared with previous models

  • All motors support 24-bit absolute encoders

  • Built-in PID control

  • Advanced gain adjustment function, system analysis interface, vibration suppression, and system modeling functions

  • Energy regeneration function

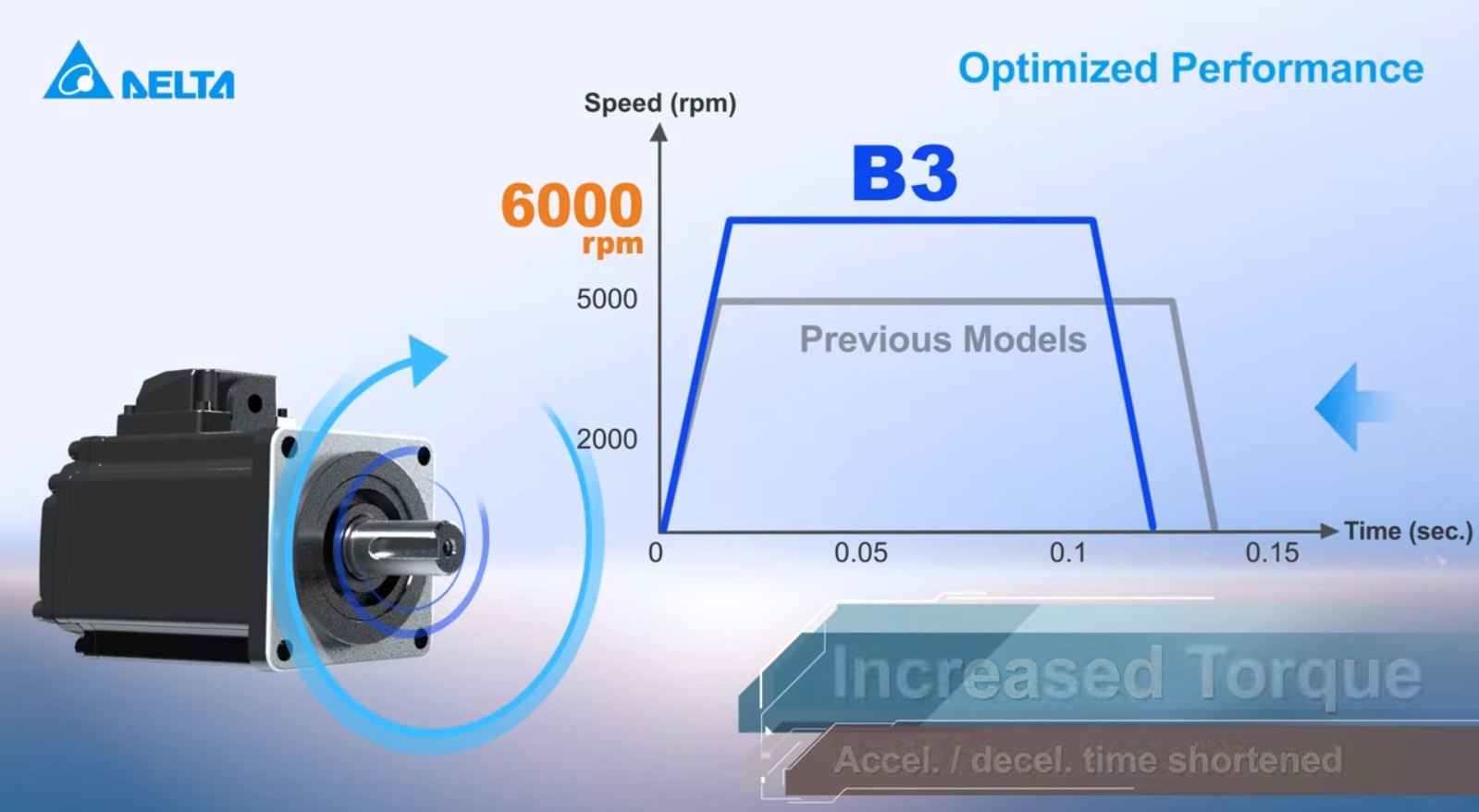

ASDA-B3 Feature 1 ASDA-B3 Feature 3
ASDA-B3 Series Servo
