Modularized Hardware Structure, Highly Integrated Software
Highly integrated software ISPSoft: Graphical Interface with 5 programming languages
Enhanced flexibility: Max. 100m between 2 local extension racks
Improved maintainability: Hot-swapping function keeps the system running

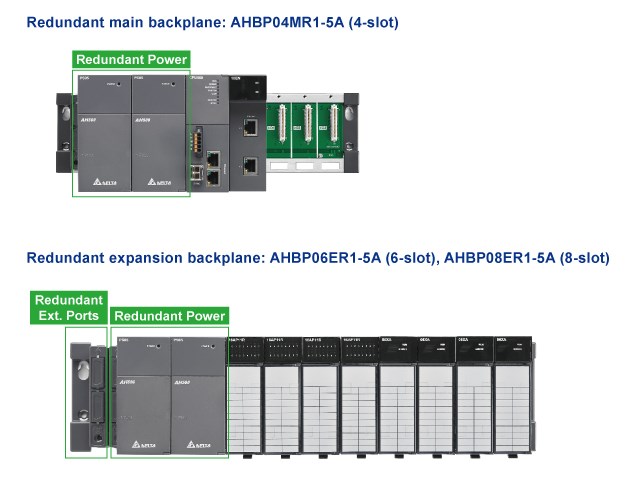

The redundant backplane of the AH Series provides redundant power supply and communication interfaces for a complete control solution.
Provides EtherCAT, DMCNET and pulse train solutions for customers.
Motion modules can independently take care of both the logic and motion control. Users can write and download the programs to the motion modules.
All motion modules support the standard motion control system.
All motion modules can be installed on the local backplanes
Provides EtherCAT, DMCNET and pulse train solutions for customers.
Motion modules can independently take care of both the logic and motion control. Users can write and download the programs to the motion modules.
All motion modules support the standard motion control system.
All motion modules can be installed on the local backplanes
New 32-bit SoC (System on Chip) CPU to enhance execution speed (40 k steps / ms)
Positioning control function for up to 8-axis motion control via CANopen / 6-axis 200 kHz pulse control
Robust non-backplane design and patented DIN rail clips for vertical module installation and replacement
ISPSoft editing software for programming, hardware configuration, network communication, system diagnostics and positioning planning
Up to 32 axes can be synchronized (including virtual axes)
- AS516E(EtherCAT): 16 axes/1ms, max. 16 real axes
- AS524C(CANopen): 4 axes/2ms, max. 24 real axes
Offers motion function blocks complying with international standards, supporting Jerk and BufferMode to enable non-stop operation between motion paths
Supports encoder axes and virtual axes. No need to purchase
additional encoder modules Easy-to-use basic motion control
features:
- Single-axis speed/position/homing/torque control commands
Advanced motion features to fulfill complex processing
requirements:
- Electronic gear, electronic cam and rotary cut applications
function blocks
- G code/group axes commands: supports up to 8-axis linear/arc/
helical interpolation
Provides multiple controller solutions
EtherCAT motion controllers

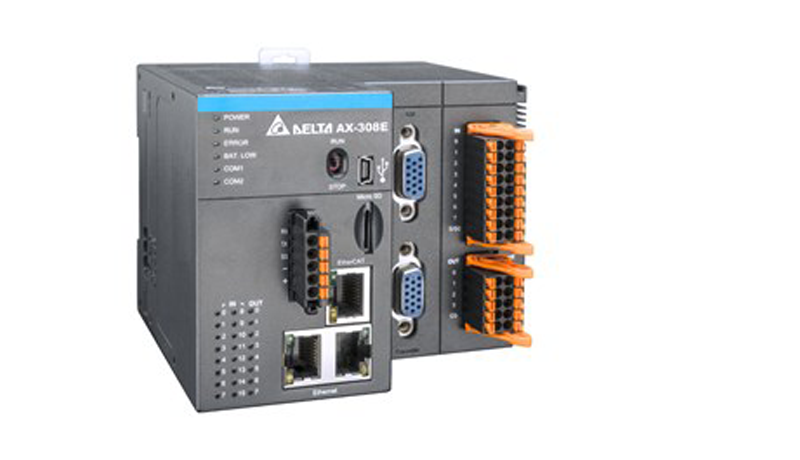

- AX-308E/AX-316E/AX-332E CPU supports up to 8/16/32 EtherCAT
axes (AX-332E min. sync time: 1 ms/32 axes)
- AX-304EL/AX-364EL CPUs support up to 4/64 EtherCAT axes
(Point-to-Point mode)
Logical controllers
- AX-300N/AX-324N CPUs built-in 0/24 DIO points

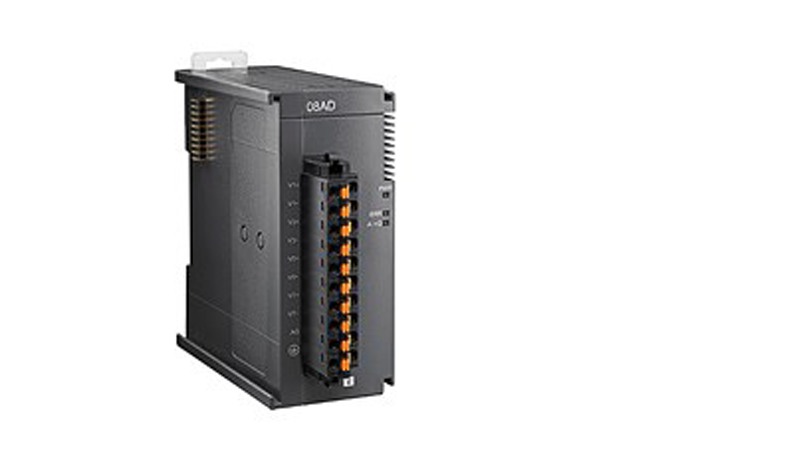

Supports AS power, DIO, AIO and temperature expansion modules (max. 32 modules)
Provides various motion commands: position, velocity, torque, multi-axis interpolation, E-gear, E-CAM, and more

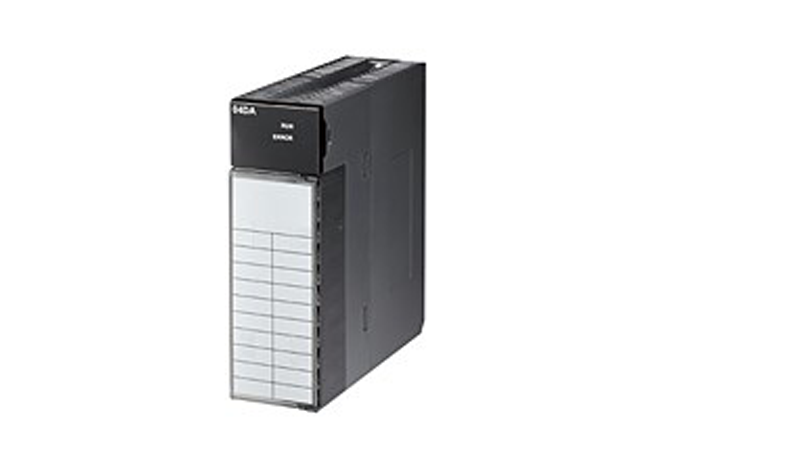

Digital I/O modules (output/input/mix), analog I/O modules (output/input/mix), temperature measurement modules, load cell modules, communication modules, function cards
Features a fast command execution time of 5 nanoseconds.
Supports Ethernet/IP, EtherCAT, RS-232/485, and CANopen protocols, along with 16 digital inputs (DI) and 8 digital outputs (DO).
Can control up to 32 axes, including virtual and real axes, with synchronization capabilities. It supports motion function blocks and smooth path transitions.
Compliant with IEC 61131-3 standards, allowing user-friendly programming through Delta's DIAStudio Smart Machine Suite and DIADesigner+ software.
The modular and rackless DIN-rail installation is space-saving and supports easy module replacement.
32-bit System on Chip (SoC) CPU for high-speed execution (up to 40k steps/ms).
Supports up to 1,024 I/O points.
Includes RS-485 ports, USB, Ethernet, and Micro SD card support.
Can connect up to 32 extension modules, with options for digital, analog, load cell, temperature, and communication modules.
Compact, rackless design with patented DIN rail clips for easy module installation
Upgraded execution speed: 25ns for basic instructions
Flexible programming: supports new software DIADesigner and AS series instructions with a larger program capacity
Max I/O: 256 points
Enhance interoperability: 2 built-in Ethernet ports (rj45), 1 CAN port, analog I/O, and supports EtherNet/IP
MPU points: 16/20/24/32/40/60
Program Capacity: 16K Steps
Built-in with 3 COM ports: RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
MPU points: 16/20/24/32/40/60
Program Capacity: 16K Steps
Built-in with 3 COM ports: RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
Enhanced program capacity supports up to 16k steps
Supports high-speed pulse output of 4 points at 50 kHz
Supports high-speed pulse input of 2 points at 50 kHz
Supports external interrupt up to 8 points
Digital modules (output/input/mix): 8,16, 32(AC power)
Analog modules (output/input/mix): 4 channel, 6 channel inputs (14-bit)
Temperature measurement modules: conversion time 200ms/channel, overall accuracy +/-0.6%, resolution RTD inputs Pt100 / Pt1000 / Ni100 / Ni1000, thermocouple inputs J, K, R, S, T, E, N type
Resolver modules: distance 50M, resolution 12-bits, 500rpm, disconnection detection is supported
Outstanding execution speed: 25 ns for basic instructions (with the AS Series PLC processor)
Larger program capacity: 64K steps
Max. I/O: 512 points (256 inputs + 256 outputs, including its built-in 16 inputs and 16 outputs), both left and right side expansion up to 8 modules per side
New programming software: DIADesigner enhances security and system integration
Built-in RS-485 ports*2, CAN port*1, and Micro SD card interface
Supports EtherNet/IP (Scanner/Adapter), Modbus TCP, CANopen DS301
Outstanding execution speed: 25 ns for basic instructions (with the AS Series PLC processor)
Larger program capacity: 64K steps
Max. I/O: 512 points (256 inputs + 256 outputs, including its built-in 16 inputs and 16 outputs), both left and right side expansion up to 8 modules per side
New programming software: DIADesigner enhances security and system integration
Built-in RS-485 ports*2, CAN port*1, and Micro SD card interface
Supports EtherNet/IP (Scanner/Adapter), Modbus TCP, CANopen DS301
MPU points: 20 (8DI/6DO, 4AI/2AO)
Max. I/O points: 494 (14 + 480)
Program capacity: 16k steps
COM port: Built-in RS-232, RS-485 & USB ports, compatible with ASCII/RTU protocol. Can be master or slave.
High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.
Built-in High-Speed Counters
Built-in Analog I/O

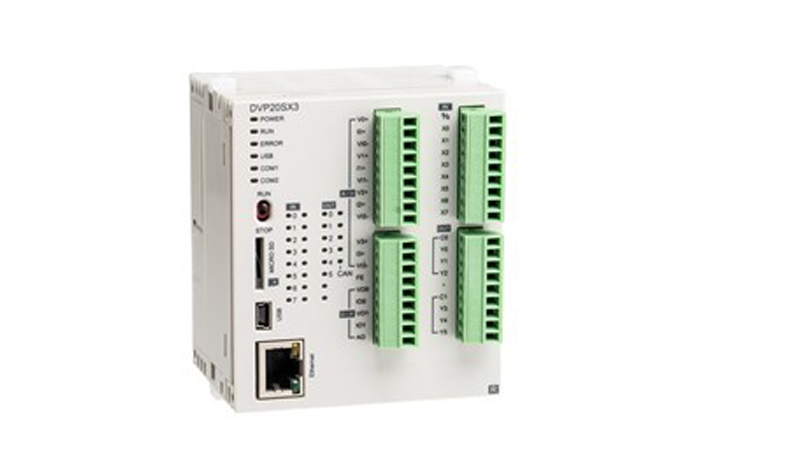

MPU points: 10 (4DI/2DO, 2AI/2AO)
Max. I/O points: 230
Program capacity: 8k steps
Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.
High-speed pulse output: Supports 2-point independent high-speed pulse output (Y0 of up to 50KHz and Y1 of up to 10KHz).
Built-in High-Speed Counters
Built-in Analog I/O

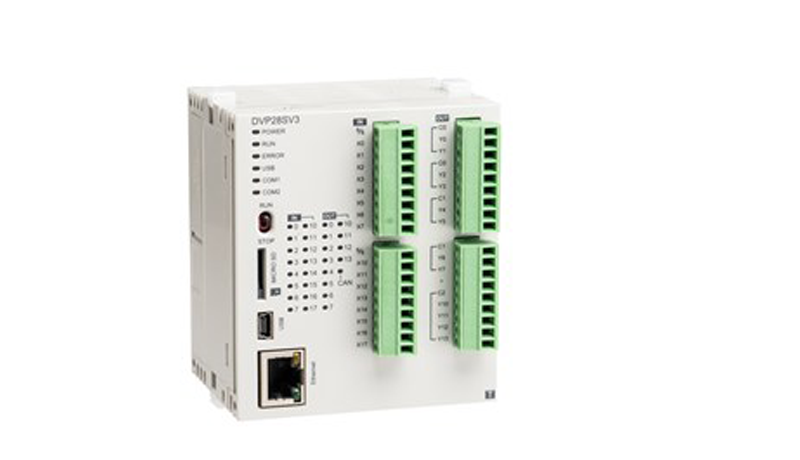

MPU points: 12 (8DI + 4DO)
Max. I/O points: 492 (12 + 480)
Program capacity: 16K Steps
Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol. Can be master or slave.
High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.

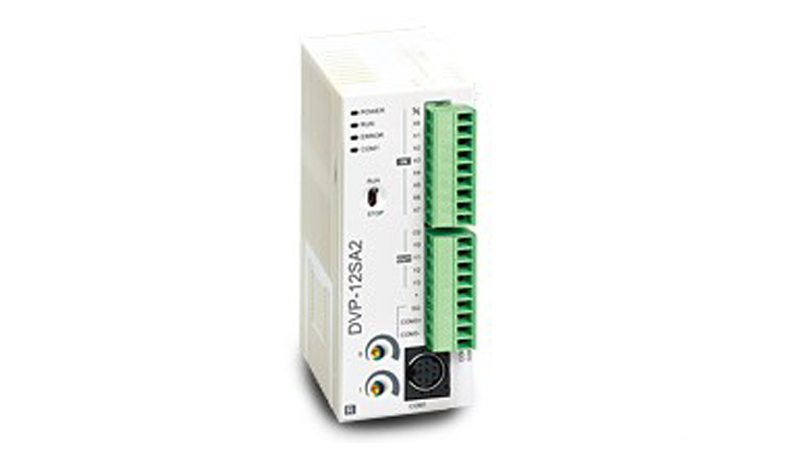

Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/ DeviceNet communication modules and single-axis motion control functions.
Built-in high-speed Counters
The most complete network type slim PLC in the industry
Provides 8 digital inputs and 4 digital outputs
Built-in mini USB, Ethernet, and 2 RS-485 ports
MPU points: 14 (8DI + 6DO)
Max. I/O points: 494 (14 + 480)
Program capacity: 8k steps
COM port: Built-in RS-232, RS-485 & USB ports, compatible with ASCII/RTU protocol. Can be master or slave.
High-Speed Pulse Output：Supports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse output
Supports PID Auto-tuning：DVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed.
Built-in High-Speed Counters
Digital modules (output/input/mix), analog modules (output/input/mix), temperature measurement/control modules, load cell modules, network modules, remote I/O communication modules
Up to 24 real axes control (virtual axis no.: 1 ~ 32, can't be repetitive with real axis no.)
Built-in motion control instructions (supporting Jerk and BufferMode) and easy to use
Single axis motion control instructions: speed, torque, homing, and position setup
Application instructions: electronic gear, E-Cam, and rotary cut
G-code/group axes: 8 axes linear / arc / helical interpolation
Up to 24 real axes control (virtual axis no.: 1 ~ 32, can't be repetitive with real axis no.)
Built-in motion control instructions (supporting Jerk and BufferMode) and easy to use
Supports encoder axis and virtual axis
Single axis motion control instructions: speed, torque, homing, and position setup
Application instructions: electronic gear, E-Cam, and rotary cut
G-code: 8 axes linear / arc / helical interpolation
Coordinates motion control instruction

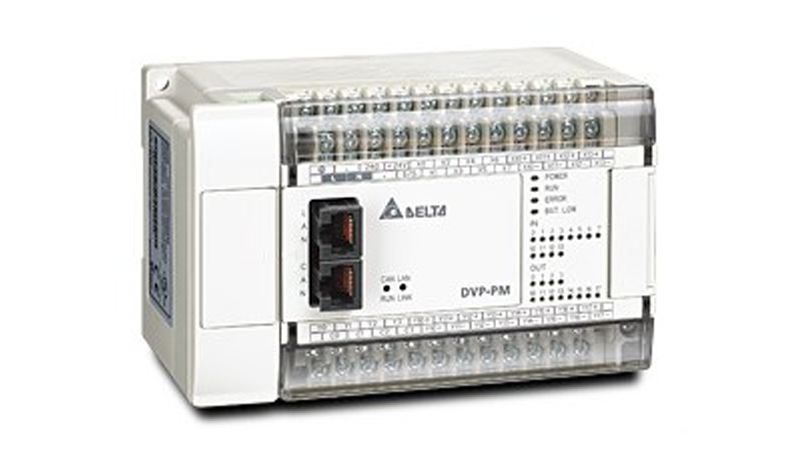

Used for 2-axis servo positioning control, material cutting machine (high-speed servo control), crane operations, material clipper controlled by the servo.
Used for 2-axis servo positioning control, material cutting machine (high-speed servo control), crane operations, material clipper controlled by the servo.
Used for 2-axis servo positioning control, material cutting machine (high-speed servo control), crane operations, material clipper controlled by the servo.

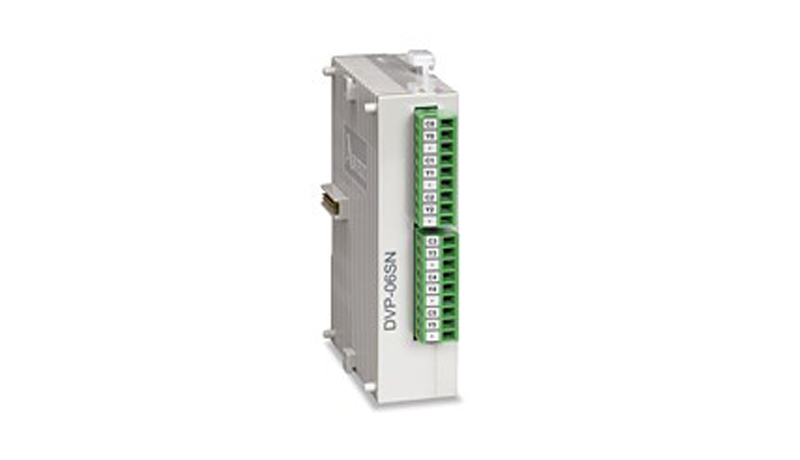

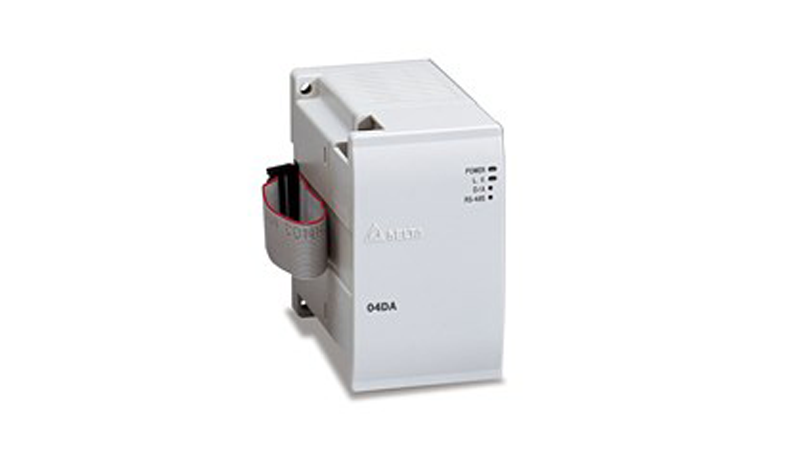

Digital modules (output/input/mix), analog modules (output/input/mix), temperature measurement modules, network modules
