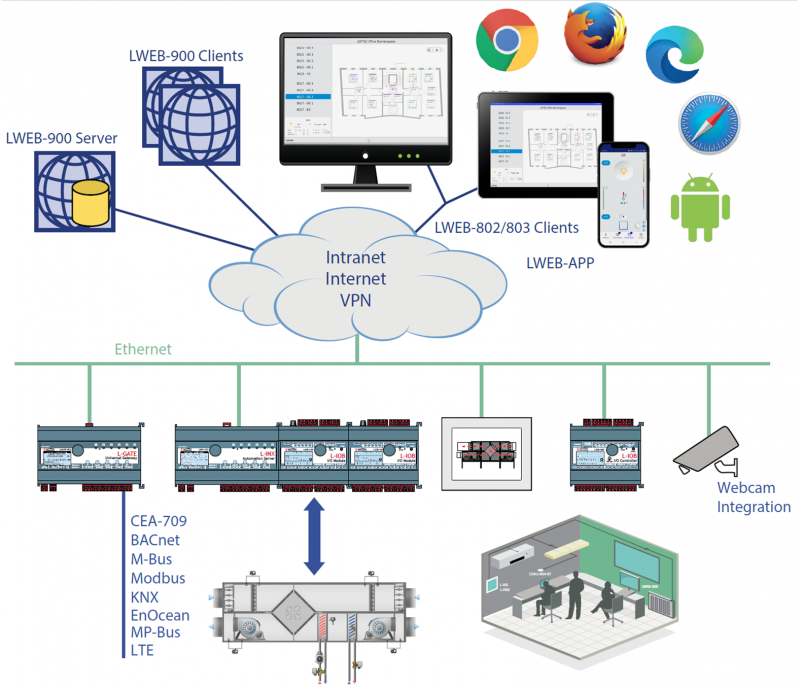

Comprehensive Building Management

LWEB-900 integrates and manages all building automation systems, including HVAC, lighting, security, energy, and more, from a central point, allowing for holistic control of the building.

Scalable and Modular Design

The system is scalable, supporting small buildings as well as large multi-site or campus-wide installations. Its modular design allows users to easily expand or adapt the system as the building's needs evolve.

Graphical User Interface (GUI)

The system provides a user-friendly, web-based graphical interface that allows operators to monitor and control all building systems in real-time. It offers customizable dashboards with dynamic graphics, alarms, and trending data.

Cross-System Integration

LWEB-900 is compatible with a wide range of communication protocols, including BACnet, KNX, Modbus, LON, DALI, and M-Bus, ensuring seamless integration with third-party devices and systems.

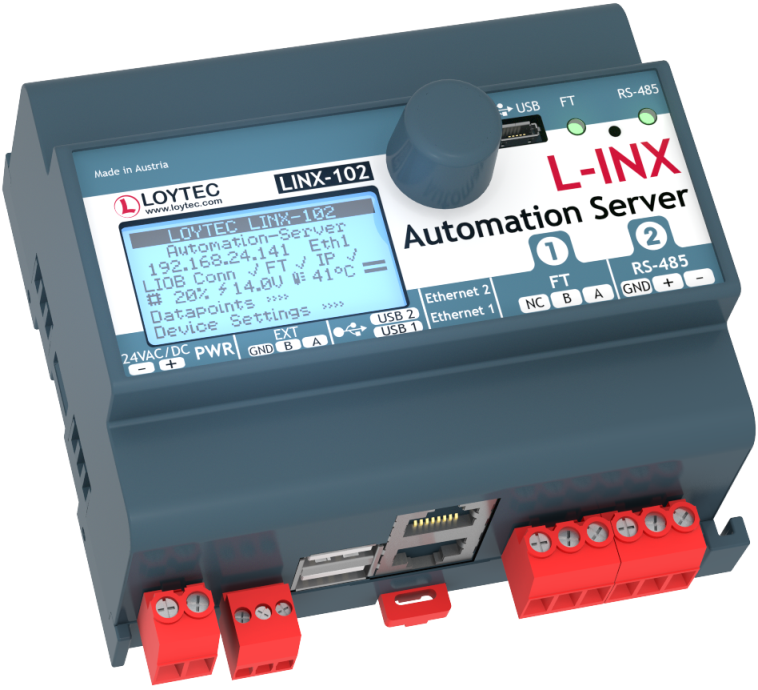

Programmable with L‑STUDIO IEC 61131‑3 and IEC 61499

Physical inputs and outputs with L‑IOB I/O Modules (LIOB‑11x, LIOB‑15x, and LIOB‑45x/55x for LINX‑153) (LIOB‑45x/55x for LINX‑154)

Room controller for up to 8 room segments

Local and remote access to information about device status and data points

Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)

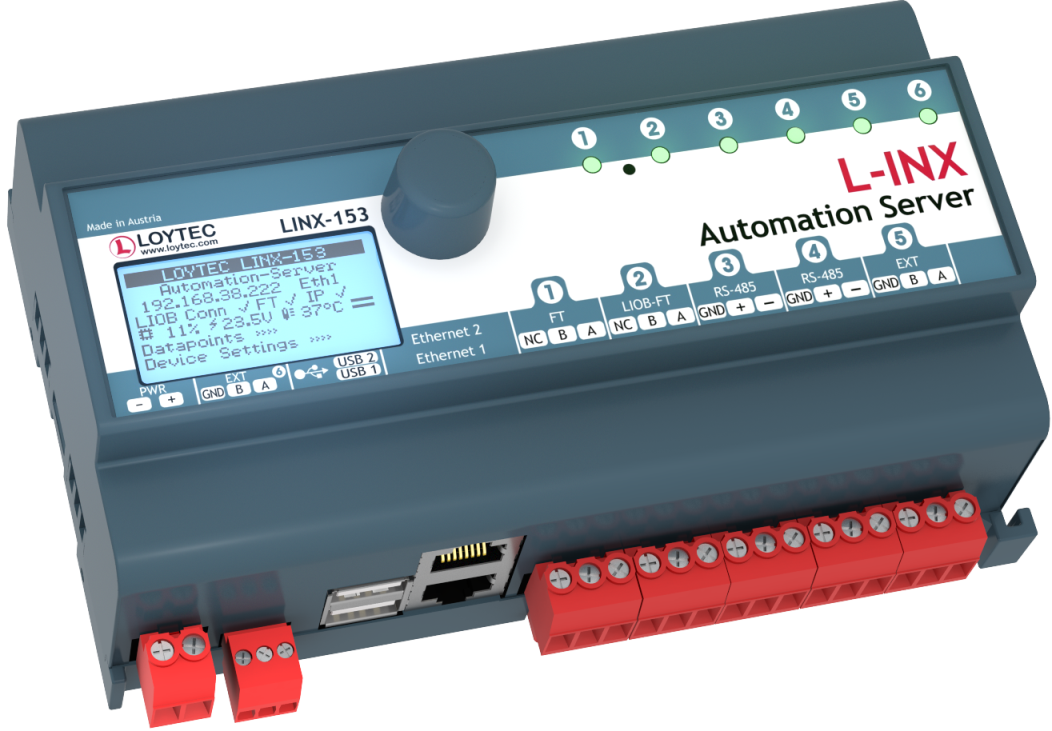

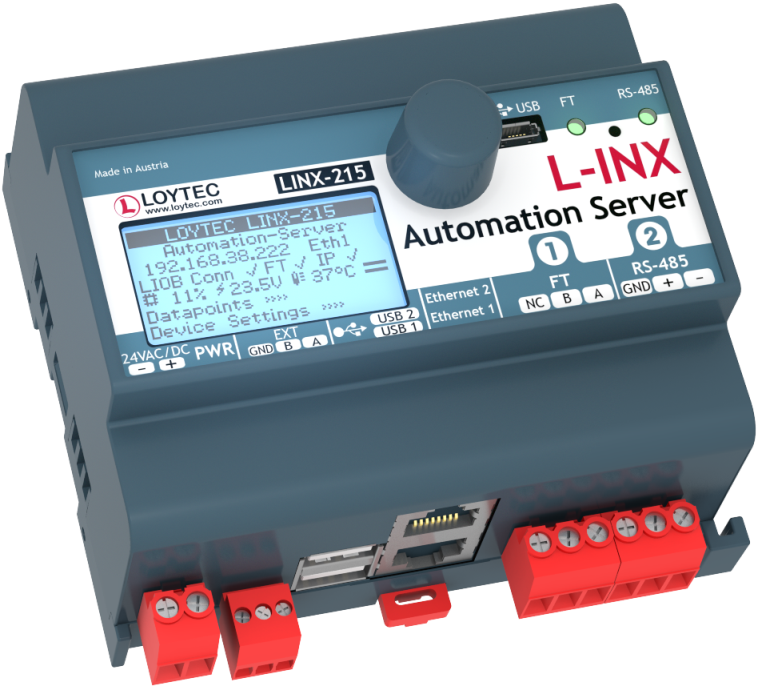

Programmable with L‑STUDIO (IEC 61131‑3 and IEC 61499)

Room controller for up to 8 room segments

Extension with physical inputs and outputs using L‑IOB I/‌O Modules (LIOB‑10x/11x, LIOB‑15x, LIOB‑45x and LIOB‑55x)

Local and remote access to information about device status and data points

128x64 graphic display with backlight

Visualization of customized graphical pages through LWEB‑900 (building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)

Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)

Stores customized graphical pages

Extension with physical inputs and outputs using L‑IOB I/O Modules (LIOB‑11x/Ax, LIOB‑15x, and LIOB‑45x)

128x64 graphic display with backlight

Local and remote access to information about device status and data points

Node.js* support for easy IoT integration (e.g. Google calendar, Alexa & friends, multimedia equipment,…)

Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)

Stores customized graphical pages

Extension with physical inputs and outputs using L‑IOB I/O Modules (LIOB‑11x/Ax, LIOB‑15x, and LIOB‑45x)

128x64 graphic display with backlight

Local and remote access to information about device status and data points

Node.js* support for easy IoT integration (e.g. Google calendar, Alexa & friends, multimedia equipment,…)

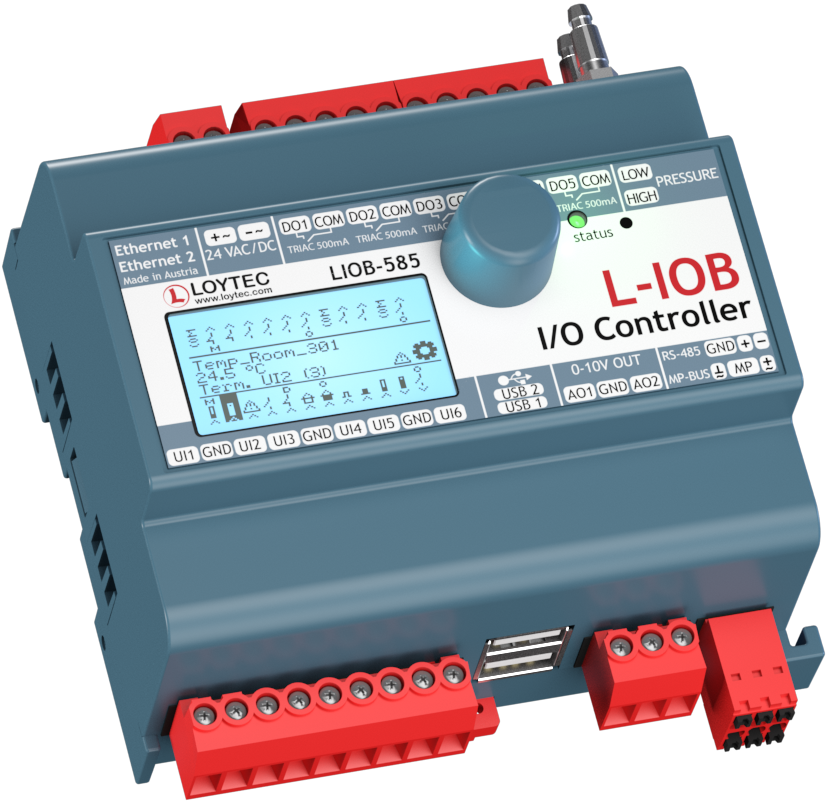

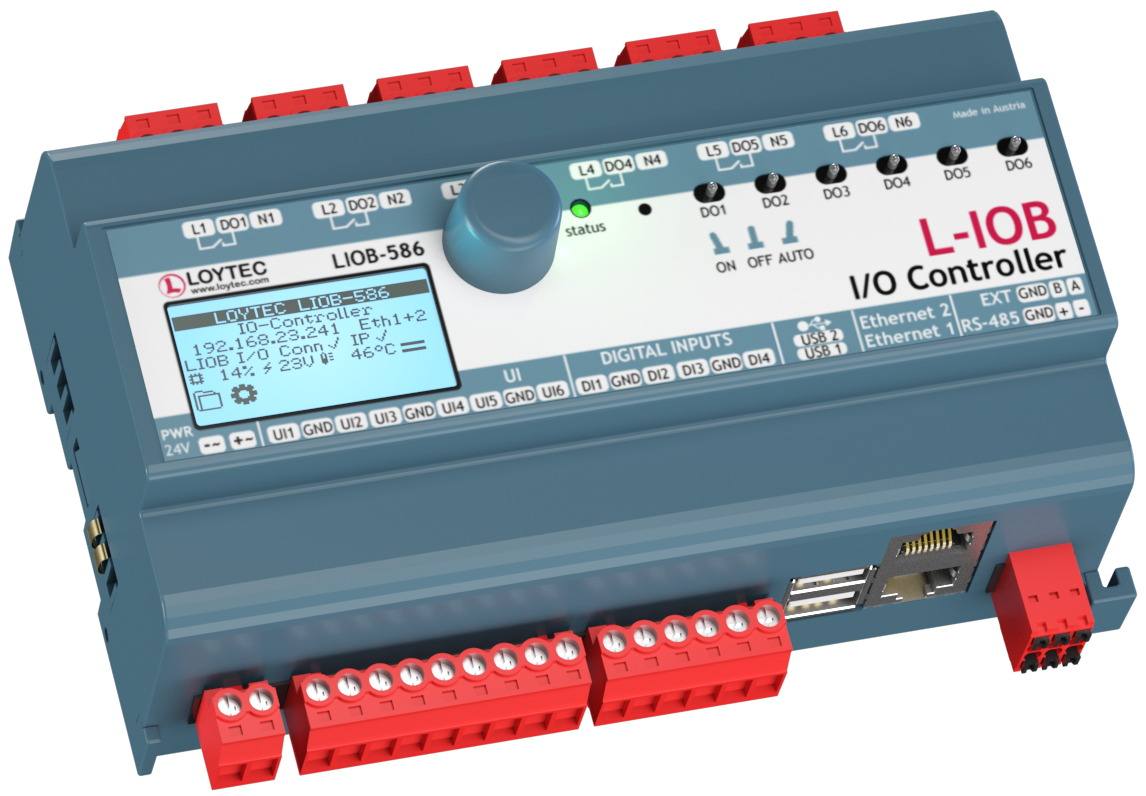

Automation station with physical inputs and outputs

Programmable with L‑STUDIO (IEC 61131‑3 or IEC 61499)

Room controller for up to 2 room segments

Extension with physical inputs and outputs using one L‑IOB I/O Module (LIOB‑11x or LIOB‑45x/55x)

Local and remote access to information about device status and data points

Automation station with physical inputs and outputs

Programmable with L‑STUDIO (IEC 61131‑3 or IEC 61499)

Room controller for up to 2 room segments

Extension with physical inputs and outputs using one L‑IOB I/O Module (LIOB‑11x or LIOB‑45x/55x)

Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)

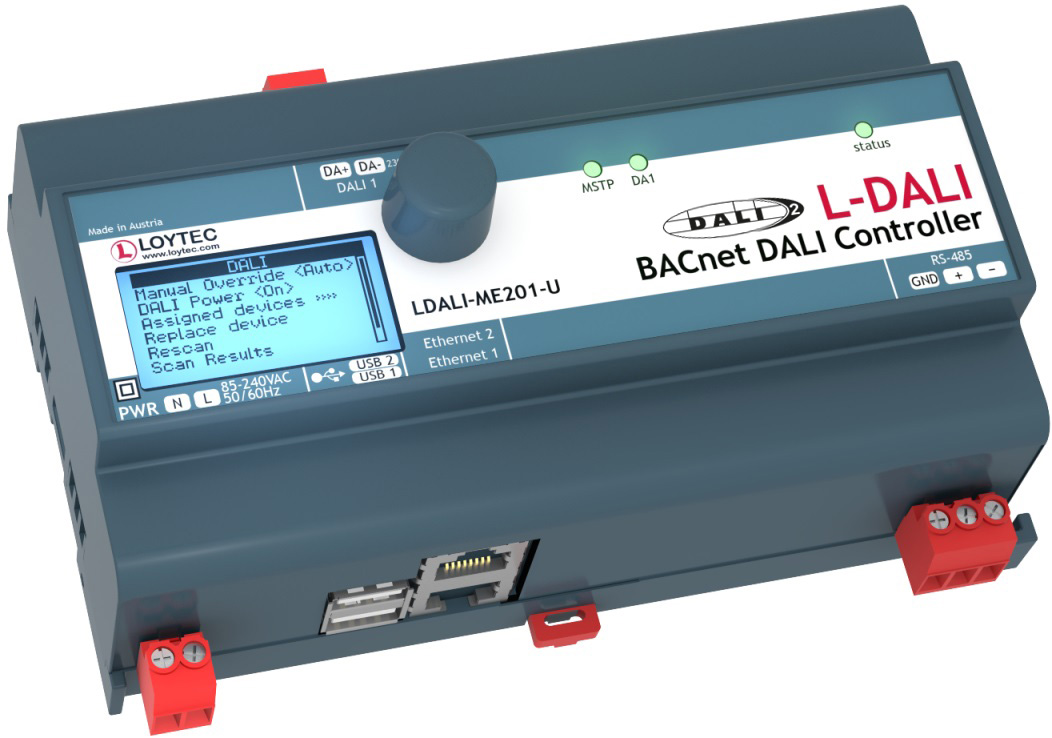

DALI Sensors

The L-DALI Controllers support the integration of DALI-2 multi-sensors for presence detection and light level recognition. In addition to the LOYTEC multi-sensors LDALI-MS2-BT/MS3-BT/MS4-BT, DALI-2 sensors of many well-known manufacturers can be used. For asset tracking in office buildings with the LOYTEC multi-sensors (LDALI-MSx-BT), a LIC-ASSET license is required.

DALI Buttons

For manual operation, DALI-2 push button couplers, like the LDALI-BM2, DALI-2 operation panels and IR remote controls can be integrated into the system. Their functionality can be configured individually.

DALI Relay Modules

Standard loads in the power grid can be controlled via DALI using DALI relay modules, like the LDALI-RM5 / LDALI-RM6 /LDALI-RM8.

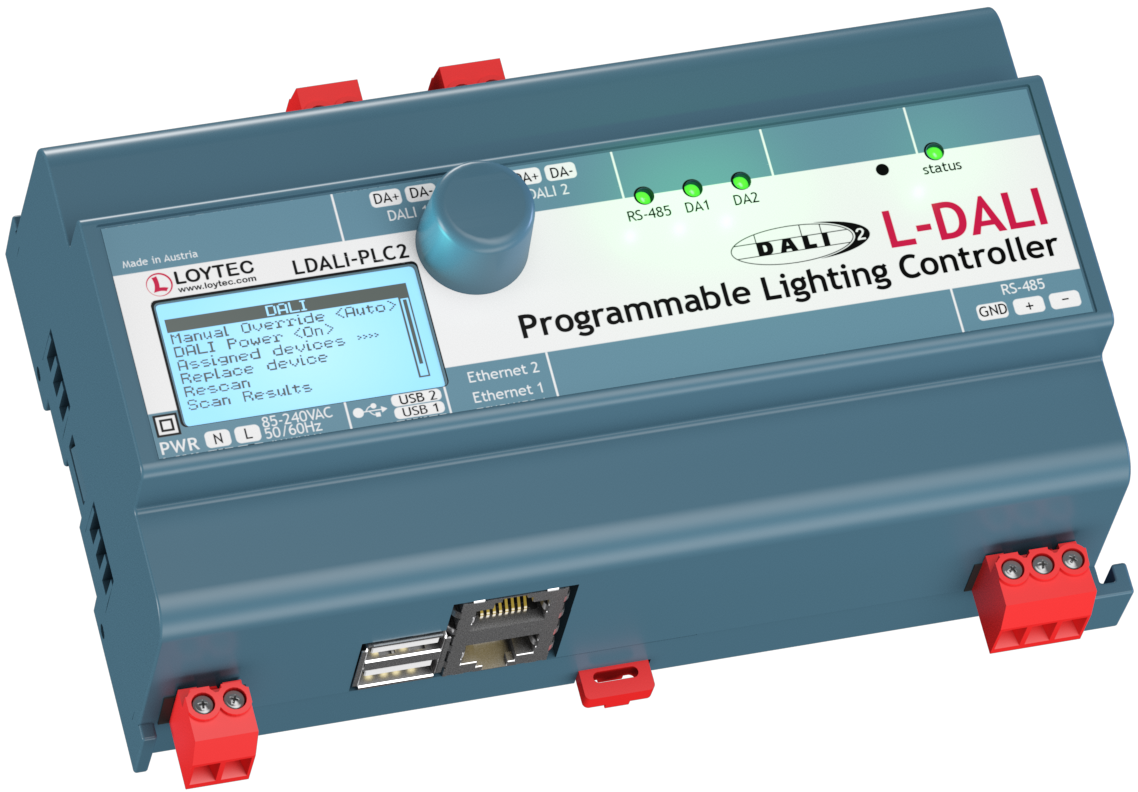

DALI Sensors

The L-DALI Controllers support the integration of DALI-2 multi-sensors for presence detection and light level recognition. In addition to the LOYTEC multi-sensors LDALI‑MS2-BT/MS3‑BT/MS4‑BT, DALI-2 sensors of many well-known manufacturers can be used.

DALI Buttons

For manual operation, DALI-2 push button couplers, like the LDALI-BM2, DALI-2 operation panels, and IR remote controls can be integrated into the system. The function executed when a button is pressed is freely programmable in the program logic. In addition the feedback feature for pushbutton instances according to IEC 62386‑332 is supported.

DALI Relay Modules

Standard loads in the power grid can be controlled via DALI using DALI relay modules, like the LDALI-RM5, LDALI-RM6 and LDALI-RM8.

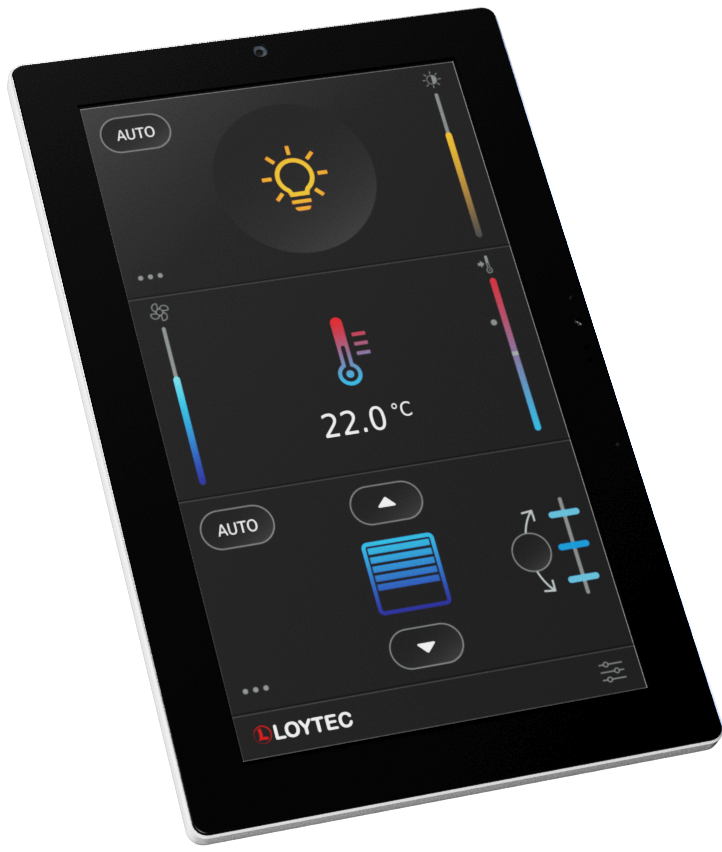

High resolution IPS touch display with dimmable backlight

Glass front and capacitive touch

Portrait or landscape mounting

Device configuration and graphical page creation with the L‑PAD/L-VIS/L-WEB configuration tool free of charge

Room controller for up to 2 room segments (LPAD7-31Gx and LPAD7-41Gx only)

Supports all popular graphic file formats such as GIF, JPG, BMP, TIFF, PNG, APNG, MNG, ICO

Supports popular font types such as TrueType, Type-1, BDF, PCF, and OTF

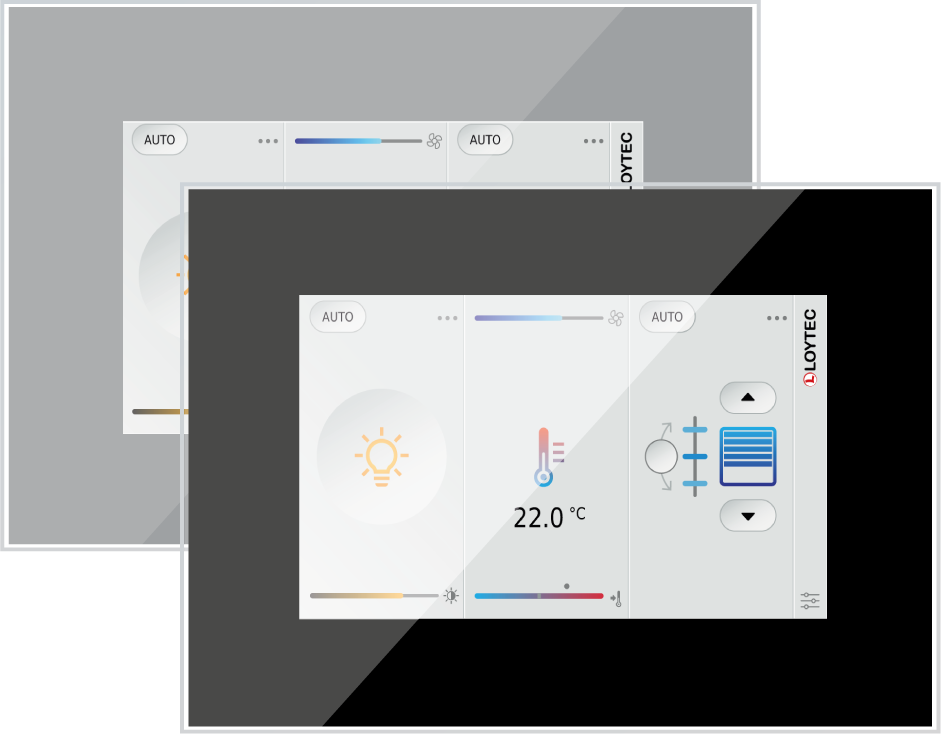

High resolution TFT touch display with dimmable backlight

Anodized aluminium front frame or frameless glass front and capacitive touch (LVIS-3ME7‑Gx/LVIS-3ME15-Gx)

Flush-mounting in combination with the mounting frame

Stores customized graphical pages

Visualization of customized graphical pages through built-in touch panel, LWEB‑900 (building management), and LWEB‑802/‌803

Device configuration and graphical page creation with the L-VIS/L-WEB configuration tool free of charge

Modbus RTU interface for integration into controllers

Easy integration into LOYTEC controllers such as L-INX, L-ROC or L-IOB I/O Controller

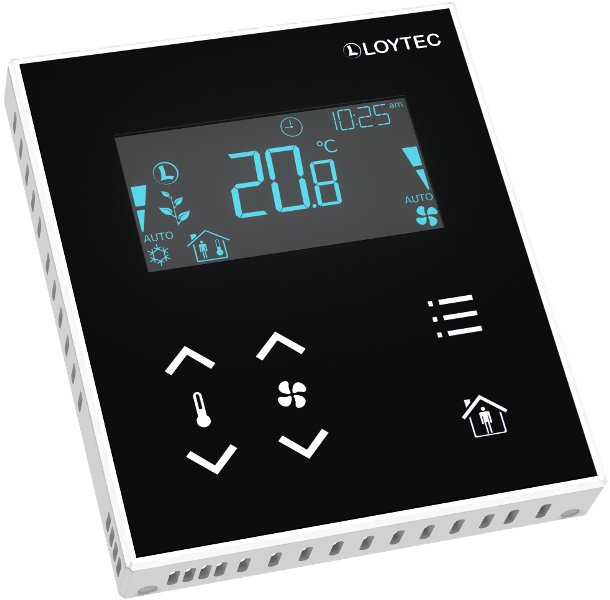

Segmented LCD display

LCD RGB backlight color can be adjusted via network

Display time and date

Symbols for eco-friendliness level (green leaves)
