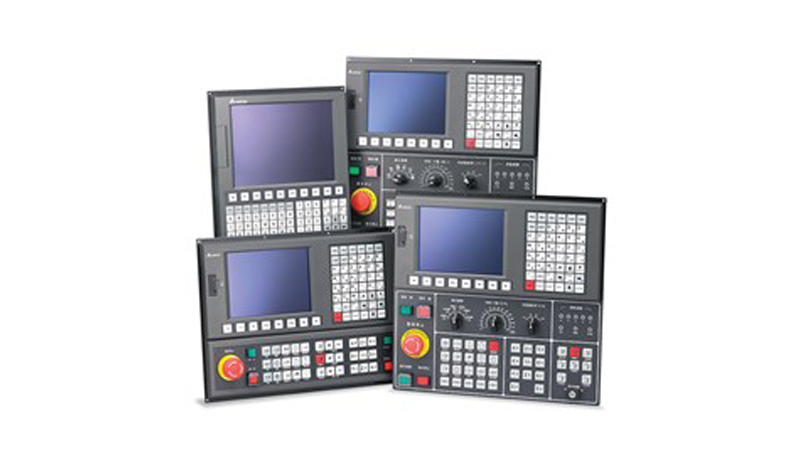

CNC Solution B Series
Loading...
CNC Solutions
Open cnc Controller NC eb series
Features And Benefits
CNC Accessories
Touchscreen
Features And Benefits
New 10” / 15” external touch screen that enhances the user experience
Flexible and perfectly integrates with Open CNC B series
Comes equipped with Delta’s large touch screen for operating the OpenCNC controller and defining a desired and user-friendly interface.
Second Operating Panel
Features And Benefits
Comes equipped with Delta’s large touch screen for operating the OpenCNC controller and defining a desired and user-friendly interface.
Delta's second operating panel provides abundant keys/buttons and supports user-defined features according to user needs
Expansion I/O
Features And Benefits
Comes equipped with Delta’s large touch screen for operating the OpenCNC controller and defining a desired and user-friendly interface.
Delta also supports a comprehensive range of accessories, such as the second operating panel, and handwheel.
Handwheel
Features And Benefits
Comes equipped with Delta’s large touch screen for operating the OpenCNC controller and defining a desired and user-friendly interface.
Delta also supports a comprehensive range of accessories, such as the second operating panel, and handwheel.
DOP-100 Series
Advanced HMI
W Type
Features And Benefits
size options: 4.3” / 7” / 10.1” / 12” / 15”
High-performance CPU: Cortex-A8, Cortex-A7 Dual Core
Highly integrated design: Built-in 2 Ethernet ports, 4 serial communication ports (D-Sub x 2), USB, SD card slot, and more (applicable to 12"/15" models)
Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation
Multi-language input: Supports 16 languages, applicable for recipe parameters and account input
M Type
Features And Benefits
Multiple Size options: 12" / 15"
High-performance CPU:Cortex-A7 Dual Core
Highly integrated design: Built-in 2 Ethernet ports, 4 serial communication ports (D-Sub x 2), USB, SD card slot, and more.
Multi-language input: Supports 16 languages, applicable for recipe parameters and account input
Handheld HMI
H Type
Features And Benefits
Highly integrated design: Built-in Ethernet port or serial communication ports, USB slave, SD/SDHC card slot, and more
High-performance CPU:Cortex-A8
Multi-functional accessories: Built-in emergency stop switch, 3-position operation switch, MPG (optional).
Security isolation protection:Power isolation, Serial communication port isolation, Ethernet isolation
Certification: CE
Standard HMI
C Type
Features And Benefits
Multiple size options: 5.6” / 7” / 10.1“ / 10.4”
High-performance CPU:Cortex-A8
Highly integrated design: Built-in 3 serial communication ports (D-Sub x 2), USB, and more.
Security isolation protection:Power isolation
Certification: CE/UL
P Type
Features And Benefits
Full lamination design
High-performance CPU:Cortex-A8
Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 2), USB, and more
Security isolation protection:Ethernet isolation
Certification: CE/UL
E Type
Features And Benefits
Multiple size options: 7” (16 : 9) / 7” (4 : 3)
High-performance CPU:Cortex-A8
Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 2), USB, SD card slot, and more
Security isolation protection:Power isolation, Serial communication port isolation, Ethernet isolation
Certification: CE/UL
I Type
Features And Benefits
Multiple size options: 7” / 8” / 10.1“ / 10.4”
High-performance CPU:Cortex-A8
Highly integrated design: Built-in Ethernet port, 3 serial communication ports (D-Sub x 3), USB, SD card slot, and more
Security isolation protection:Power isolation, Serial communication port isolation, Ethernet isolation
Certification: CE/UL
Basic HMI
S Type
Features And Benefits
IPS design:Wide viewing angle
High-performance CPU:Cortex-A8
Highly integrated design: Built-in 2 serial communication ports (D-Sub x 1), USB, and more
Certification: CE / UL
B Type
Features And Benefits
Multiple size options: 4.3” / 7”
High-performance CPU:Cortex-A8
Highly integrated design: Built-in 2 serial communication ports (D-Sub x 1), USB, and more
Certification: CE / UL
D Type
Features And Benefits
Multiple size options: 4.3” / 7”
IPS design: Wide viewing angle (4.3’’)
High-performance CPU:Cortex-A8
Highly integrated design: Built-in Ethernet port, 2 serial communication ports (D-Sub x 1), USB, and more
Security isolation protection: Power isolation, Serial communication port isolation, Ethernet isolation (7” comes with only Ethernet isolation)
Certification: CE / UL
TPO4 Series
Features And Benefits
Adopts the core of the DVP-SS2 Series PLC: program capacity: 8 k steps / D device: 5k words
Provides 2 sets of 10 kHz high-speed pulse input
4.1" STN-LCD
Provides 0 ~ 9 numeric keys with user-defined function
Built-in USB port for program upload/download
Built-in RS-485 port*2
Supports MODBUS ASCII/RTU modes
User-defined boot screen available
Built-in real time clock (RTC)
Digital and analog I/O terminals available
ASDA-A3 Series
Features And Benefits
16,777,216 pulses/turns ensure precise positioning
Steady performance at low-speed enhances machining quality
Keeps motor's position during power shortage
3.1 kHz Bandwidth
24-bit Absolute Type Encoder
E-CAM & 99 sophisticated motion commands and segments allowed
Graphical user interface offers simple setup and programming
Arithmetic operation / comparison commands available
General motion functions such as homing, position and speed commands
Superimposition, blending, and jump change motion commands provided
3.1 kHz Bandwidth
Built-in auto-tuning function lowers the barriers for users and optimizes machine performance with less tuning effort
Provides step-by-step guidance wizard for easily tuning and setting up servos via panel keypad or software
AComprehensive Auto-Tuning Functions
Provides 5 sets of notch filters with up to 5 kHz tunable bandwidth
The filters can search resonance in a shorter time and set the attenuation level automatically, avoiding damage to machines
Excellent Vibration Suppression
Advanced Notch Filter
Built-in auto-tuning function lowers the barriers for users and optimizes machine performance with less tuning effort
Provides step-by-step guidance wizard for easily tuning and setting up servos via panel keypad or software
A Comprehensive Auto-Tuning Functions

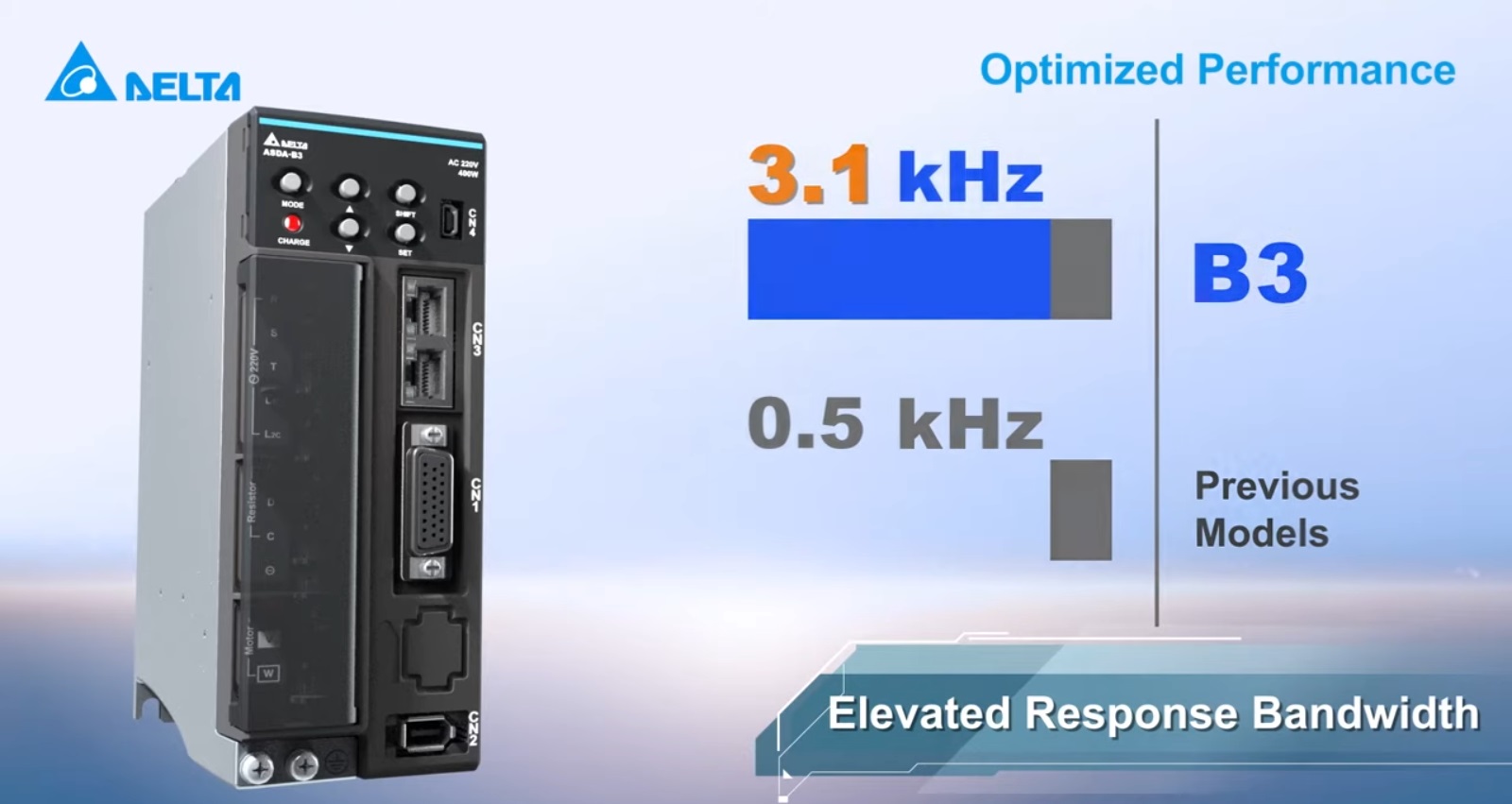

ASDA-B3 Series
High responsiveness shortens settling time by 40% compared with previous models
All motors support 24-bit absolute encoders
Built-in PID control
Advanced gain adjustment function, system analysis interface, vibration suppression, and system modeling functions
Energy regeneration function
