L-WEB Building Management
LWEB-900 Integrated Building Management System
Main Features
    Comprehensive Building Management
  • LWEB-900 integrates and manages all building automation systems, including HVAC, lighting, security, energy, and more, from a central point, allowing for holistic control of the building.
    • Scalable and Modular Design
  • The system is scalable, supporting small buildings as well as large multi-site or campus-wide installations. Its modular design allows users to easily expand or adapt the system as the building's needs evolve.
    • Graphical User Interface (GUI)
  • The system provides a user-friendly, web-based graphical interface that allows operators to monitor and control all building systems in real-time. It offers customizable dashboards with dynamic graphics, alarms, and trending data.
    • Cross-System Integration
  • LWEB-900 is compatible with a wide range of communication protocols, including BACnet, KNX, Modbus, LON, DALI, and M-Bus, ensuring seamless integration with third-party devices and systems.
CT Model Series Image
L-inx Automation Server
L-inx 153 Automation Server
  • Programmable with L‑STUDIO IEC 61131‑3 and IEC 61499
  • Physical inputs and outputs with L‑IOB I/O Modules (LIOB‑11x, LIOB‑15x, and LIOB‑45x/55x for LINX‑153) (LIOB‑45x/55x for LINX‑154)
  • Room controller for up to 8 room segments
  • Local and remote access to information about device status and data points
  • Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)
LINX-215 Automation Server
Main Features
  • Programmable with L‑STUDIO (IEC 61131‑3 and IEC 61499)
  • Room controller for up to 8 room segments
  • Extension with physical inputs and outputs using L‑IOB I/‌O Modules (LIOB‑10x/11x, LIOB‑15x, LIOB‑45x and LIOB‑55x)
  • Local and remote access to information about device status and data points
  • 128x64 graphic display with backlight
  • Visualization of customized graphical pages through LWEB‑900 (building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)
LINX-215 Model Series Image
LINX-102/103 Automation Server CEA-709
Main Features
  • Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)
  • Stores customized graphical pages
  • Extension with physical inputs and outputs using L‑IOB I/O Modules (LIOB‑11x/Ax, LIOB‑15x, and LIOB‑45x)
  • 128x64 graphic display with backlight
  • Local and remote access to information about device status and data points
  • Node.js* support for easy IoT integration (e.g. Google calendar, Alexa & friends, multimedia equipment,…)
LINK-102 Image
LINX-202/203 Automation Server BACnet
Main Features
  • Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)
  • Stores customized graphical pages
  • Extension with physical inputs and outputs using L‑IOB I/O Modules (LIOB‑11x/Ax, LIOB‑15x, and LIOB‑45x)
  • 128x64 graphic display with backlight
  • Local and remote access to information about device status and data points
  • Node.js* support for easy IoT integration (e.g. Google calendar, Alexa & friends, multimedia equipment,…)
LINX-202 Image
L-Iob I/O Controllers

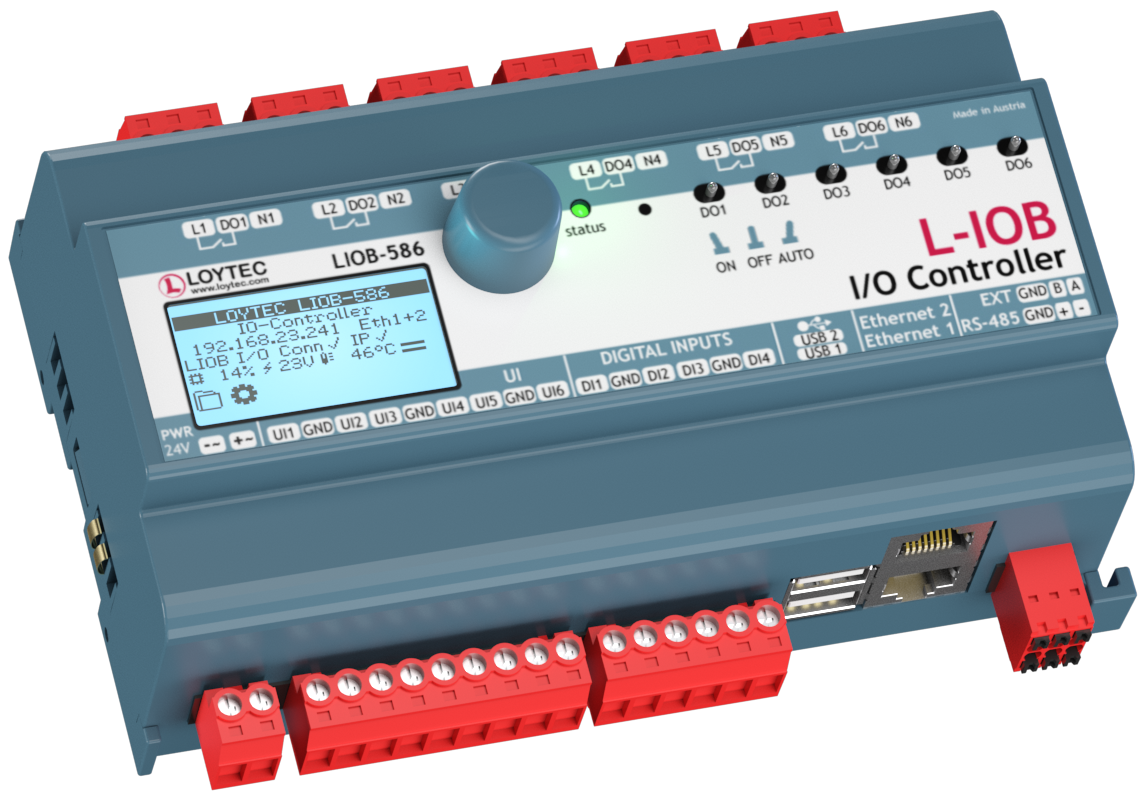

LIOB-586/587/588/589 I/O Controller
Main Features
  • Automation station with physical inputs and outputs
  • Programmable with L‑STUDIO (IEC 61131‑3 or IEC 61499)
  • Room controller for up to 2 room segments
  • Extension with physical inputs and outputs using one L‑IOB I/O Module (LIOB‑11x or LIOB‑45x/55x)
  • Local and remote access to information about device status and data points
LIOB-586 Image
LIOB-585 I/O Controller
Main Features
  • Automation station with physical inputs and outputs
  • Programmable with L‑STUDIO (IEC 61131‑3 or IEC 61499)
  • Room controller for up to 2 room segments
  • Extension with physical inputs and outputs using one L‑IOB I/O Module (LIOB‑11x or LIOB‑45x/55x)
  • Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), or LWEB‑802 (Web Browser)
LIOB-585 Series Image
Dali Lighting Wired Control
L-DALI: ME201
Main Features
  • DALI Sensors
    • The L-DALI Controllers support the integration of DALI-2 multi-sensors for presence detection and light level recognition. In addition to the LOYTEC multi-sensors LDALI-MS2-BT/MS3-BT/MS4-BT, DALI-2 sensors of many well-known manufacturers can be used. For asset tracking in office buildings with the LOYTEC multi-sensors (LDALI-MSx-BT), a LIC-ASSET license is required.
  • DALI Buttons
    • For manual operation, DALI-2 push button couplers, like the LDALI-BM2, DALI-2 operation panels and IR remote controls can be integrated into the system. Their functionality can be configured individually.
  • DALI Relay Modules
    • Standard loads in the power grid can be controlled via DALI using DALI relay modules, like the LDALI-RM5 / LDALI-RM6 /LDALI-RM8.
ME201 Image
LDALI‑PLC2 / LDALI‑PLC4: Programmable DALI Controller
Main Features
  • DALI Sensors
    • The L-DALI Controllers support the integration of DALI-2 multi-sensors for presence detection and light level recognition. In addition to the LOYTEC multi-sensors LDALI‑MS2-BT/MS3‑BT/MS4‑BT, DALI-2 sensors of many well-known manufacturers can be used.
  • DALI Buttons
    • For manual operation, DALI-2 push button couplers, like the LDALI-BM2, DALI-2 operation panels, and IR remote controls can be integrated into the system. The function executed when a button is pressed is freely programmable in the program logic. In addition the feedback feature for pushbutton instances according to IEC 62386‑332 is supported.
  • DALI Relay Modules
    • Standard loads in the power grid can be controlled via DALI using DALI relay modules, like the LDALI-RM5, LDALI-RM6 and LDALI-RM8.
LDALI PLC2 Image
Touch Panels

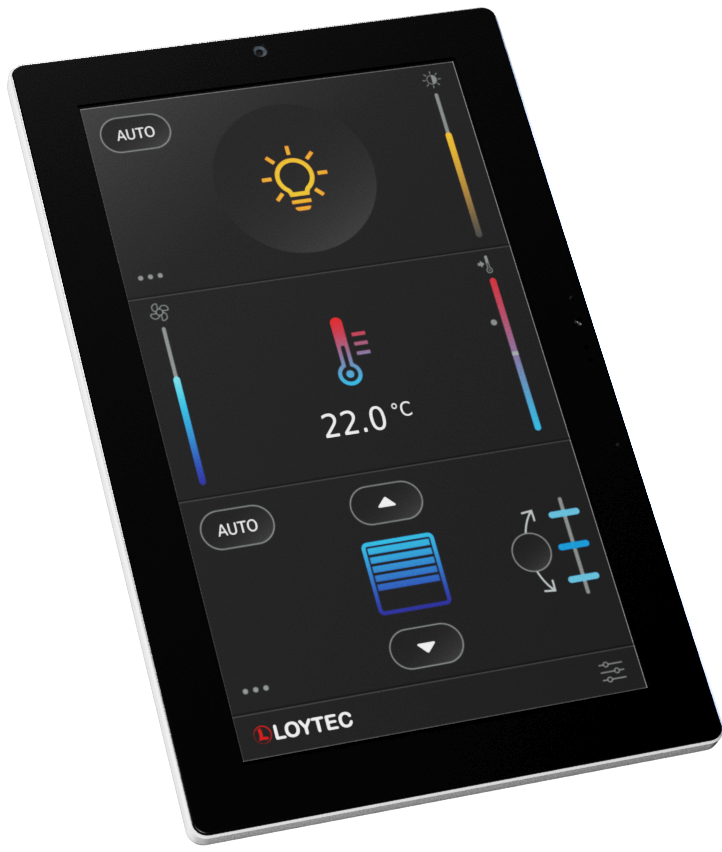

LPAD-7 Programmable Touch Panels
Main Features
  • High resolution IPS touch display with dimmable backlight
  • Glass front and capacitive touch
  • Portrait or landscape mounting
  • Device configuration and graphical page creation with the L‑PAD/L-VIS/L-WEB configuration tool free of charge
  • Room controller for up to 2 room segments (LPAD7-31Gx and LPAD7-41Gx only)
  • Supports all popular graphic file formats such as GIF, JPG, BMP, TIFF, PNG, APNG, MNG, ICO
  • Supports popular font types such as TrueType, Type-1, BDF, PCF, and OTF
LPAD-7 Image
L-VIS Touch Panels for LonMark, BACnet, and Modbus networks
Main Features
  • High resolution TFT touch display with dimmable backlight
  • Anodized aluminium front frame or frameless glass front and capacitive touch (LVIS-3ME7‑Gx/LVIS-3ME15-Gx)
  • Flush-mounting in combination with the mounting frame
  • Stores customized graphical pages
  • Visualization of customized graphical pages through built-in touch panel, LWEB‑900 (building management), and LWEB‑802/‌803
  • Device configuration and graphical page creation with the L-VIS/L-WEB configuration tool free of charge
LVIS7 Series Image
L-STAT Room Operator Panel
Main Features
  • Modbus RTU interface for integration into controllers
  • Easy integration into LOYTEC controllers such as L-INX, L-ROC or L-IOB I/O Controller
  • Segmented LCD display
  • LCD RGB backlight color can be adjusted via network
  • Display time and date
  • Symbols for eco-friendliness level (green leaves)
L-STAT Room Operator Panel Image
