Features And Benefits

• New 32-bit SoC (System on Chip) CPU to enhance execution speed（40 k steps / ms）

• Positioning control function for up to 8-axis motion control via CANopen / 6-axis 200 kHz pulse control

• Robust non-backplane design and patented DIN rail clips for vertical module installation and replacement

• ISPSoft editing software for programming, hardware configuration, network communication, system diagnostics and positioning planning

Features And Benefits

• Up to 32 axes can be synchronized (including virtual axes)
  - AS516E(EtherCAT): 16 axes/1ms, max. 16 real axes
  - AS524C(CANopen): 4 axes/2ms, max. 24 real axes

• Offers motion function blocks complying with international standards, supporting Jerk and BufferMode to enable non-stop operation between motion paths

• Supports encoder axes and virtual axes. No need to purchase additional encoder modules Easy-to-use basic motion control features:
  - Single-axis speed/position/homing/torque control commands

• Advanced motion features to fulfill complex processing requirements:
  - Electronic gear, electronic cam and rotary cut applications function blocks
  - G code/group axes commands: supports up to 8-axis linear/arc/helical interpolation

Features And Benefits

• UProvides multiple controller solutions
  EtherCAT motion controllers
  - AX-308E/AX-316E/AX-332E CPU supports up to 8/16/32 EtherCAT axes (AX-332E min. sync time: 1 ms/32 axes)
  - AX-304EL/AX-364EL CPUs support up to 4/64 EtherCAT axes (Point-to-Point mode)

• Logical controllers
  - AX-300N/AX-324N CPUs built-in 0/24 DIO points

• Supports AS power, DIO, AIO and temperature expansion modules (max. 32 modules)

• Provides various motion commands: position, velocity, torque, multi-axis interpolation, E-gear, E-CAM, and more

Features And Benefits

• Digital I/O modules (output/input/mix), analog I/O modules (output/input/mix), temperature measurement modules, load cell modules, communication modules, function cards

Features And Benefits

• Features a fast command execution time of 5 nanoseconds.

• Supports Ethernet/IP, EtherCAT, RS-232/485, and CANopen protocols, along with 16 digital inputs (DI) and 8 digital outputs (DO).

• Can control up to 32 axes, including virtual and real axes, with synchronization capabilities. It supports motion function blocks and smooth path transitions.

• Compliant with IEC 61131-3 standards, allowing user-friendly programming through Delta’s DIAStudio Smart Machine Suite and DIADesigner+ software.

• The modular and rackless DIN-rail installation is space-saving and supports easy module replacement.

Features And Benefits

• 32-bit System on Chip (SoC) CPU for high-speed execution (up to 40k steps/ms).

• Supports up to 1,024 I/O points.

• Includes RS-485 ports, USB, Ethernet, and Micro SD card support.

• Can connect up to 32 extension modules, with options for digital, analog, load cell, temperature, and communication modules.

• Compact, rackless design with patented DIN rail clips for easy module installation​

Features And Benefits

• Outstanding execution speed: 25 ns for basic instructions (with the AS Series PLC processor)

• Larger program capacity: 64K steps

• Max. I/O: 512 points (256 inputs + 256 outputs, including its built-in 16 inputs and 16 outputs), both left and right side expansion up to 8 modules per side

• New programming software: DIADesigner enhances security and system integration

• Built-in RS-485 ports*2, CAN port*1, and Micro SD card interface

• Supports EtherNet/IP (Scanner/Adapter), Modbus TCP, CANopen DS301

Features And Benefits

• Faster execution speed: 25 ns for basic instructions (with the AS Series PLC processor)

• Larger program capacity: 64K steps

• Max. I/O: 512 points (256 inputs + 256 outputs, including its built-in 16 inputs and 16 outputs), both left and right side expansion up to 8 modules per side

• New programming software: DIADesigner enhances security and system integration

• Built-in RS-485 ports*2, CAN port*1, and Micro SD card interface

• Supports EtherNet/IP (Scanner/Adapter), Modbus TCP, CANopen DS301

Features And Benefits

Specification

•

• MPU points: 20 (8DI/6DO, 4AI/2AO)

• Max. I/O points: 494 (14 + 480)

• Program capacity: 16k steps

• COM port: Built-in RS-232, RS-485 & USB ports, compatible with ASCII/RTU protocol. Can be master or slave.

• High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.

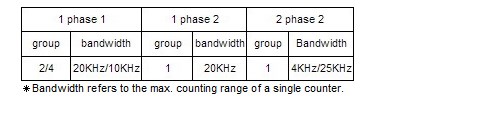

• Built-in High-Speed Counters

• Built-in Analog I/O

Specification

•

• MPU points: 10 (4DI/2DO, 2AI/2AO)

• Max. I/O points: 230

• Program capacity: 8K Steps

• Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.

• High-speed pulse output: Supports 2-point independent high-speed pulse output (Y0 of up to 50KHz and Y1 of up to 10KHz).

• Built-in High-Speed Counters

• Built-in Analog I/O function

Specification

• MPU points: 12 (8DI + 4DO)

• Max. I/O points: 492 (12 + 480)

• Program capacity: 16K Steps

• Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.

• Can be master or slave.

• High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.

• Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions.

• Built-in high-speed Counters

Features & Benefits

• The most complete network type slim PLC in the industry

• Provides 8 digital inputs and 4 digital outputs

• Built-in mini USB, Ethernet, and 2 RS-485 ports

Features & Benefits

•

• MPU points: 14 (8DI + 6DO)

• Max. I/O points: 494 (14 + 480)

• Program capacity: 8k steps

• COM port: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave.

• High-Speed Pulse Output：Supports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse output

• Supports PID Auto-tuning：DVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed.

• Built-in High-Speed Counters

Features & Benefits

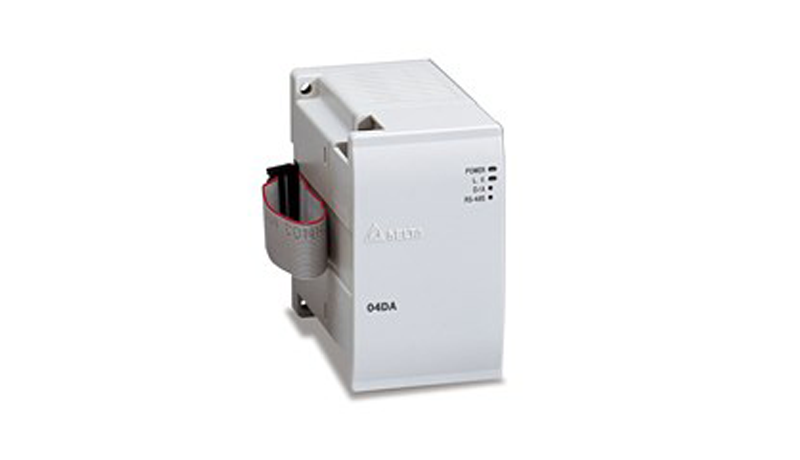

• Digital modules (output/input/mix), analog modules (output/input/mix), temperature measurement/control modules, load cell modules, network modules, remote I/O communication modules
